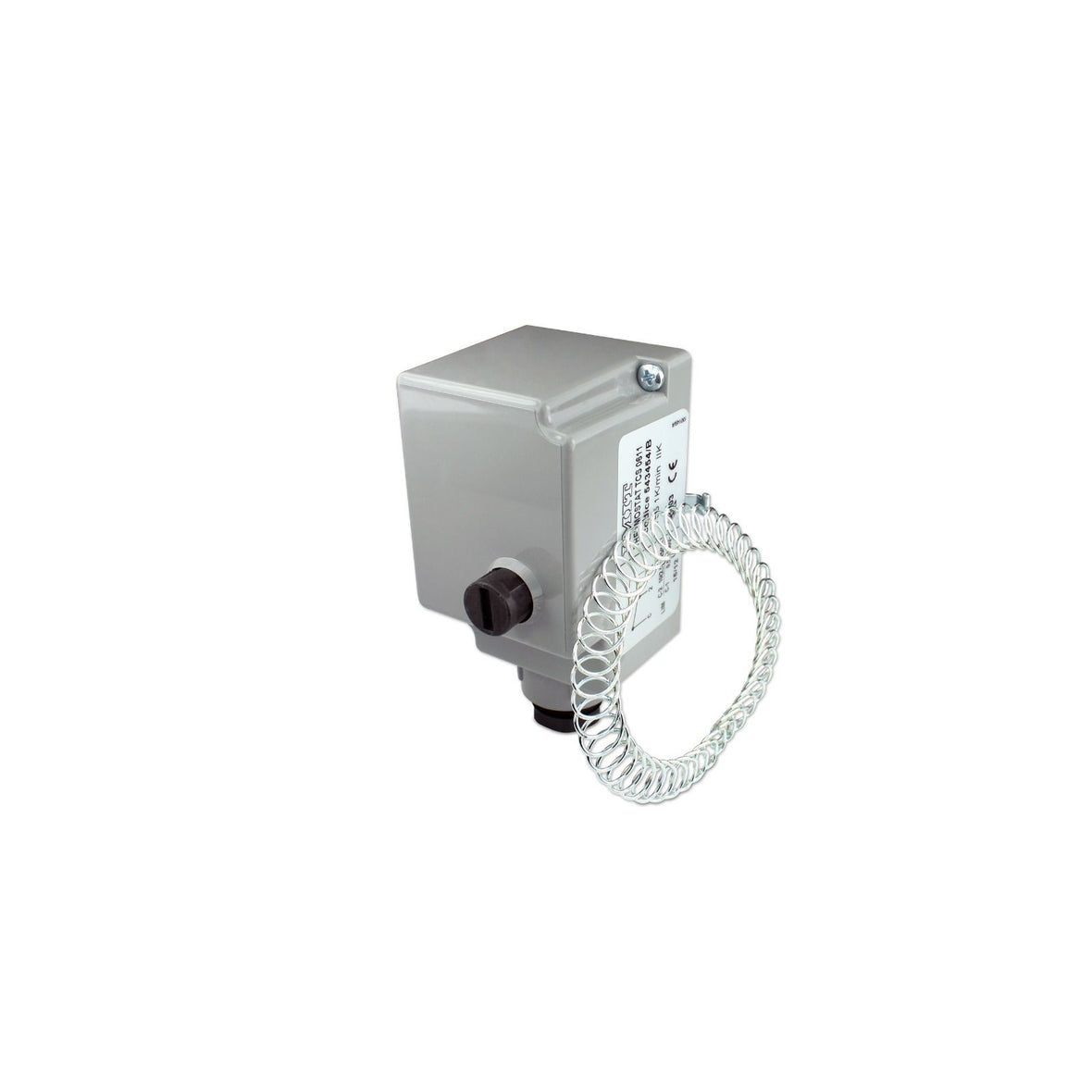

Our contact safety limiter is used to limit the temperature in boiler, storage and ventilation systems. It is especially suitable for temperature monitoring and control on pipes. This limiter can be used in the ranges +40°C...+70°C. This thermostat is delivered from the factory with a limit temperature of +60°C.
Technical data:
▸ Preset limit temperature: +60°C
▸ Limit temperature range: +40°C...+70°C
▸ Tolerance: 0...10K
▸ Reset: Manual
▸ Temperature gradient: < 1K/min
▸ max. head temperature: +55°C
▸ max. sensor temperature: +125°C
▸ max. sheath pressure: 10 bar
▸ Power at contacts: C-1: 0.5A / 250V AC and C-2: 10(2.5)A / 250V AC
▸ Cable entry: 3/8" GAS
▸ Protection class: IP40
✓ Areas of application:
✓ Boiler, storage and ventilation systems
✓ Heating, air conditioning and ventilation technology
✓ Building automation
✓ etc.
Scope of delivery:
1x contact safety temperature limiter
1x user manual
Manufacturer information:
ENVIRON Energie- und Umwelttechnik GmbH & Co. KG
Robert-Bosch-Straße 9
78048 Villingen-Schwenningen
Phone: +49 7705 977 5803
E- Mail: info@environgroup.de
Website: https://environ-solutions.de/
