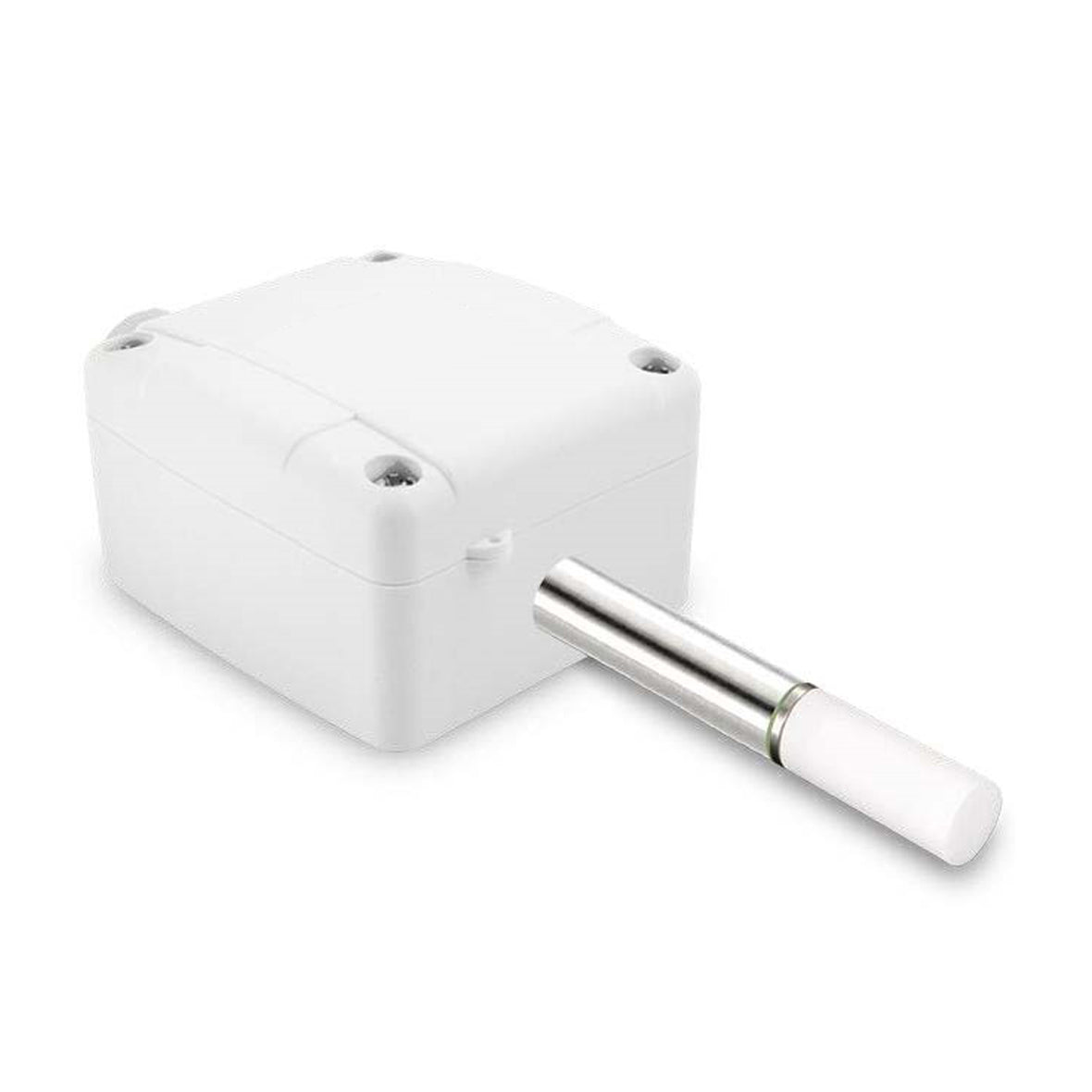

For measuring relative humidity and temperature outdoors or in rooms with increased protection requirements. The transmitter records the temperature and relative humidity via an internal sensor and converts these into a standardized analog output signal 4-20mA or 0-10V. A passive temperature sensor can also be connected. The sensor is stable over the long term and does not need to be recalibrated.

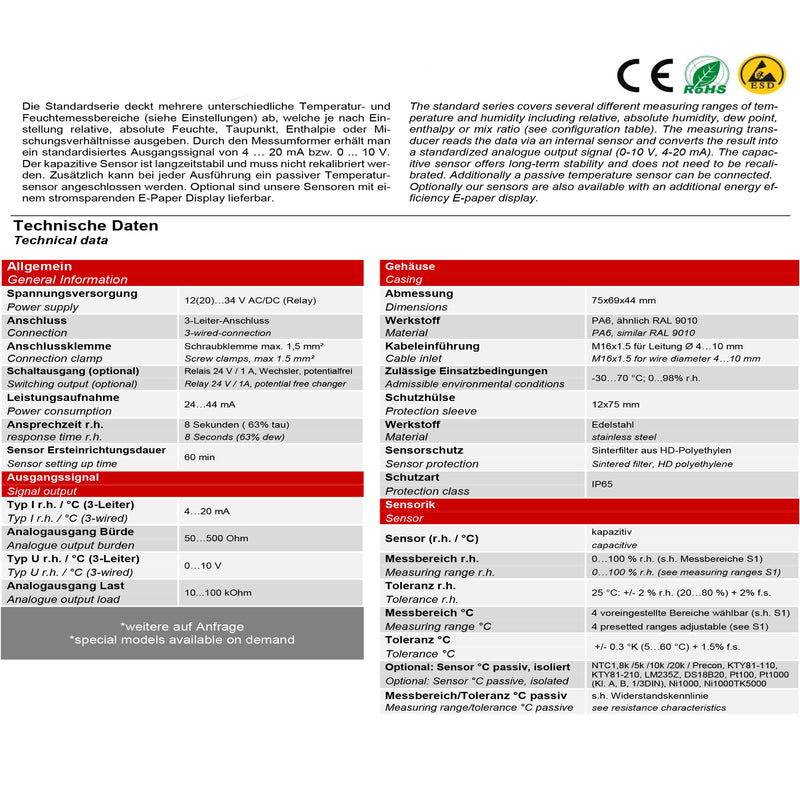

Technical data 4-20 mA
•External combination sensor for humidity and temperature 4-20 mA
•Supply voltage: 12...24VDC
•Analog output load: 300...1000 ohms
✔ Relative humidity:
• Relative humidity output: 4...20 mA
• Measuring range relative humidity: 0...100% RH
• Tolerance at 35...70% RH: +/- 2%
✔ Temperature
Output temperature: 4...20 mA
Measuring range temperature: -30...+70°C
Accuracy: +/- 0.5 K between 10...40°C
✔ Housing

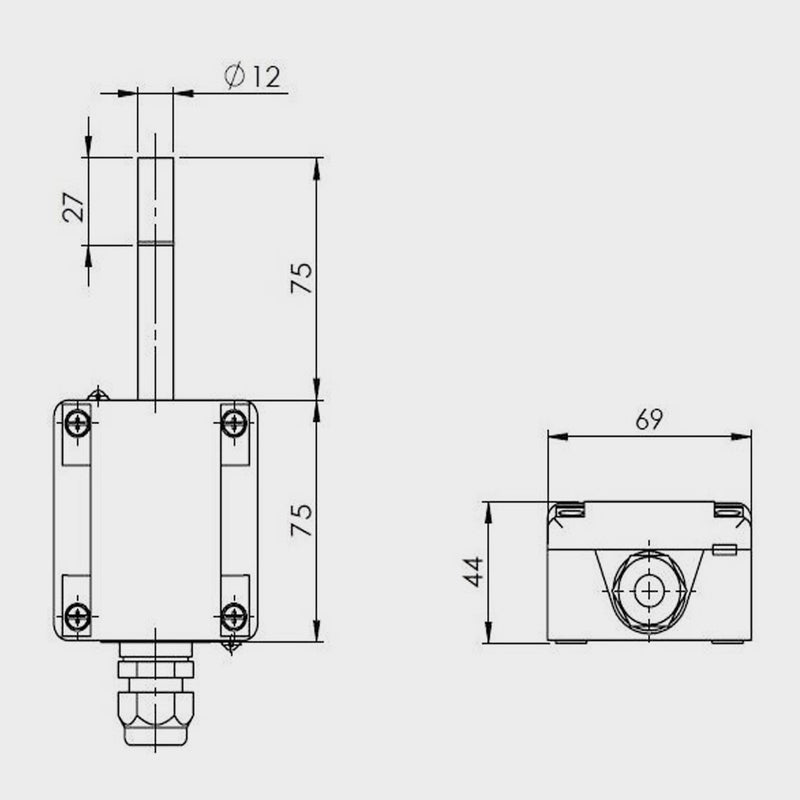

Dimensions: 65 x 60 x 38 mm
Material: PA6 15% GK, color RAL 9010
Protective tube: 12 x 75 mm made of VA
Protection class: IP65
Sensor protection: Sintered filter made of HD polyethylene

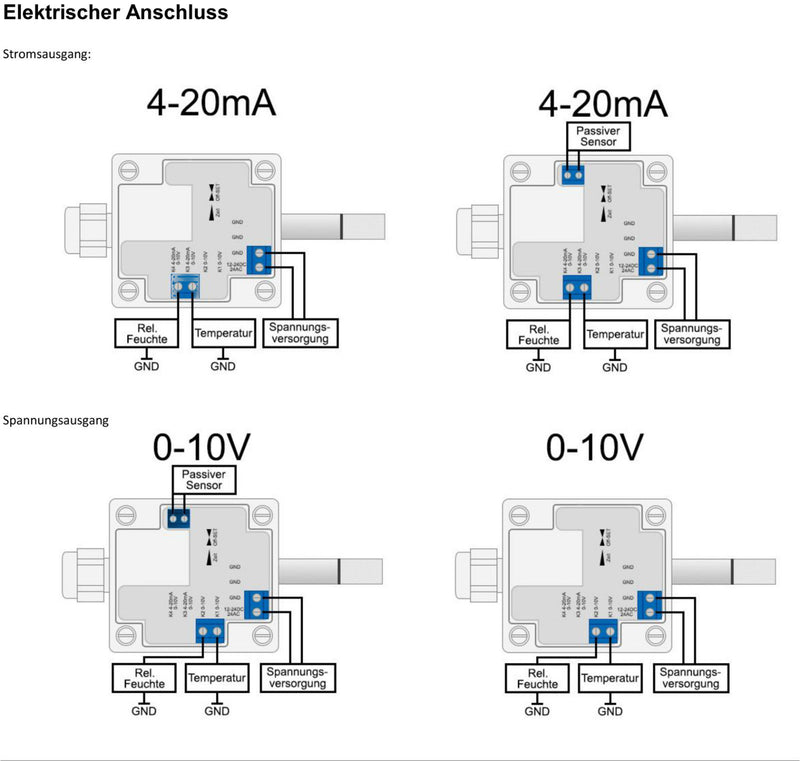

Electrical connection: screw terminal 1.5 m2

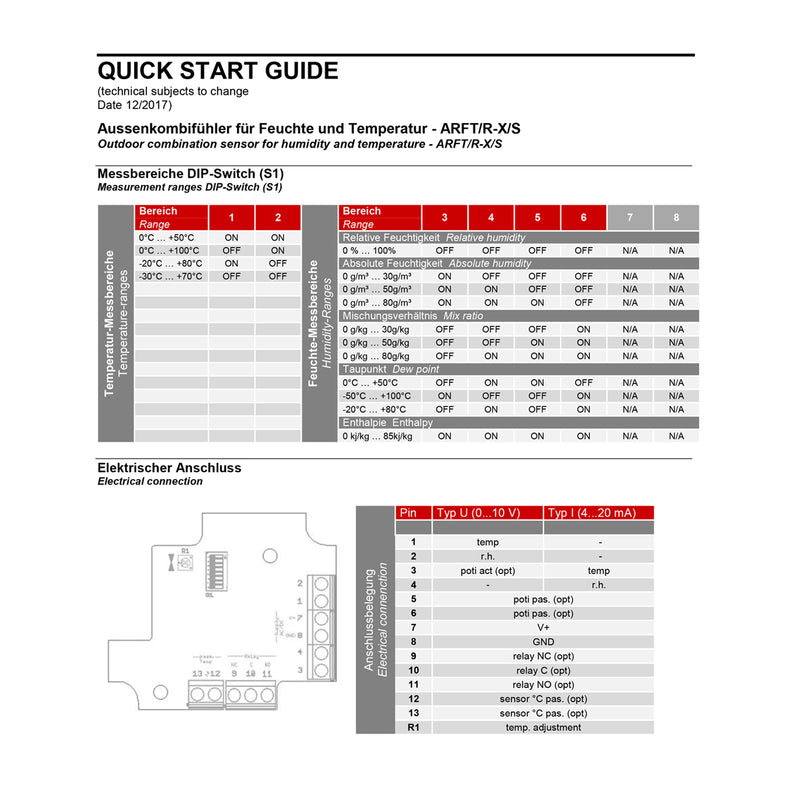

Includes dip switch for output in relative humidity, absolute humidity and dew point
Scope of delivery: Individually packed in a box, including operating instructions
Technical data 0-10V
✔ Technical data
• Outdoor combination sensor for humidity and temperature 0-10 V
• Supply voltage: 16...36 V DC
• Analogue output load: 10...100 ohms
✔ Relative humidity
• Relative humidity output: 0...10 V
• Measuring range relative humidity: 0...100% RH
• Tolerance at 35...70% RH: +/- 2%
✔ Temperature
• Output temperature: 0...10 V
• Measuring range temperature: -30...+70°C
• Accuracy: +/- 0.5 K between 10...40°C
Housing
Dimensions: 65 x 60 x 38 mm
Material: PA6 15% GK, color RAL 9010
Protective tube: 12 x 75 mm made of VA
Protection class: IP65
Sensor protection: Sintered filter made of HD polyethylene
Electrical connection: screw terminal 1.5 m2
Includes dip switch for output in relative humidity, absolute humidity and dew point
scope of delivery
Outdoor combination sensor for humidity and temperature either 4-20mA or 0-10V, individually packed in a box, including operating instructions.
