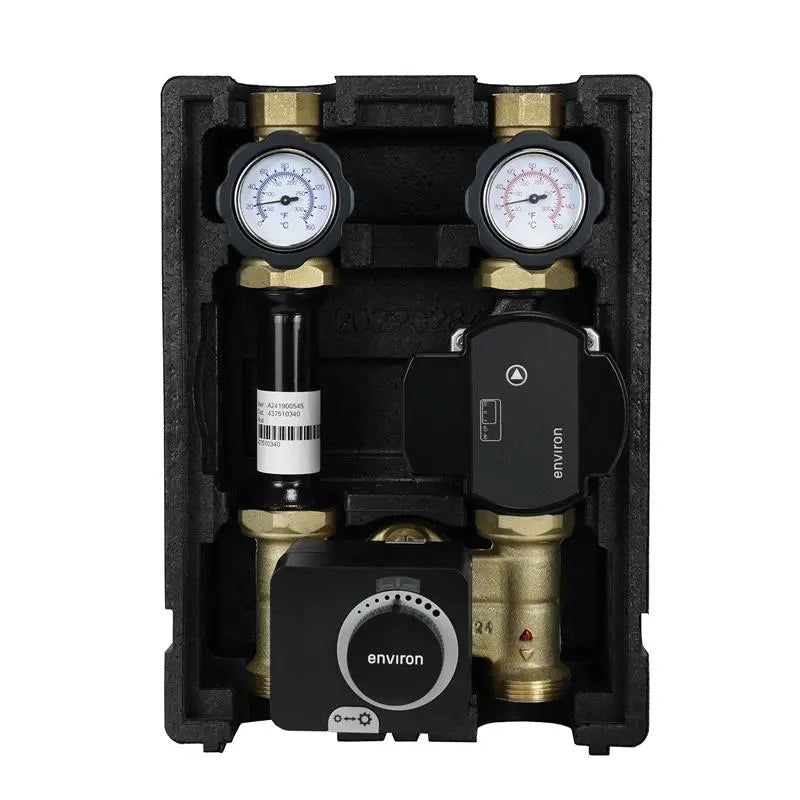

EcoMix ENH001 heating circuit pump group with three-way mixer, Environ END05 actuator and Environ EcoStar 25/6 high-efficiency pump

The EcoMix ENH001 pump group is a ready-to-install, professional pump group for heating circuits such as underfloor heating, wall heating, radiators, etc. with a built-in three-way mixer made of brass and an Environ END05 electric actuator. An Environ EcoStar 25/6 high-efficiency pump is installed. The flow and return can easily be reversed from right to left.

In the upper part of the pump group there are flat-sealing shut-off valves (1" IG) with built-in thermometers (0-160°C). If the pump group is installed individually, a wall bracket can be screwed onto the shut-off valves (not included in delivery). Maintenance or replacement of the circulation pump is very simple, without having to empty the system.

The sophisticated thermal insulation made of EPP ensures an optimal climate inside the insulation so that no heat build-up occurs. If several pump groups from the EcoMix series are used, the individual insulation elements together with the distributor bar form an elegant, perfect unit.

Technical Details

▸ Flow rate 1,600 l/h
▸ Temperature 110 °C
▸ Max. pressure 6 bar
▸ Kvs: 8.3
▸ Axle distance: 125mm
▸ Nominal size: DN25
▸ Pump mounting length: 130mm
▸ Pump type: Environ EcoStar 25/6 high-efficiency pump
▸ Min. temperature 10 °C Kvs 8.3
▸ Ball valves Brass CW617N
▸ Material insulation EPP 38 g/l
▸ Thermal conductivity (λ 40”C) 0.038 W/mK
▸ Fire protection class ISO 3795
▸ EPDM sealing set
▸ Consumer connections 1”IG
▸ Connections system 1”½ AG
▸Power supply: 230V
▸ Thermometer scale: 0-160°C

Technical data Environ EcoStar 25/6 high-efficiency pump:

▸ Max. delivery height: 6m
▸ Max flow rate: 3.6m³/h
▸ Temperature range: -20°C to +110°C
▸ Power consumption: 3W-43W
▸ Operating pressure: max. 10 bar
▸ Electrical connection: 230V/50HZ
▸ Supply voltage: 220~240V, 50/60Hz
▸ Protection level: IP44
▸ Insulation class: H
▸ EMC standard: EN61000-6-1 and EN61000-6-3

scope of delivery

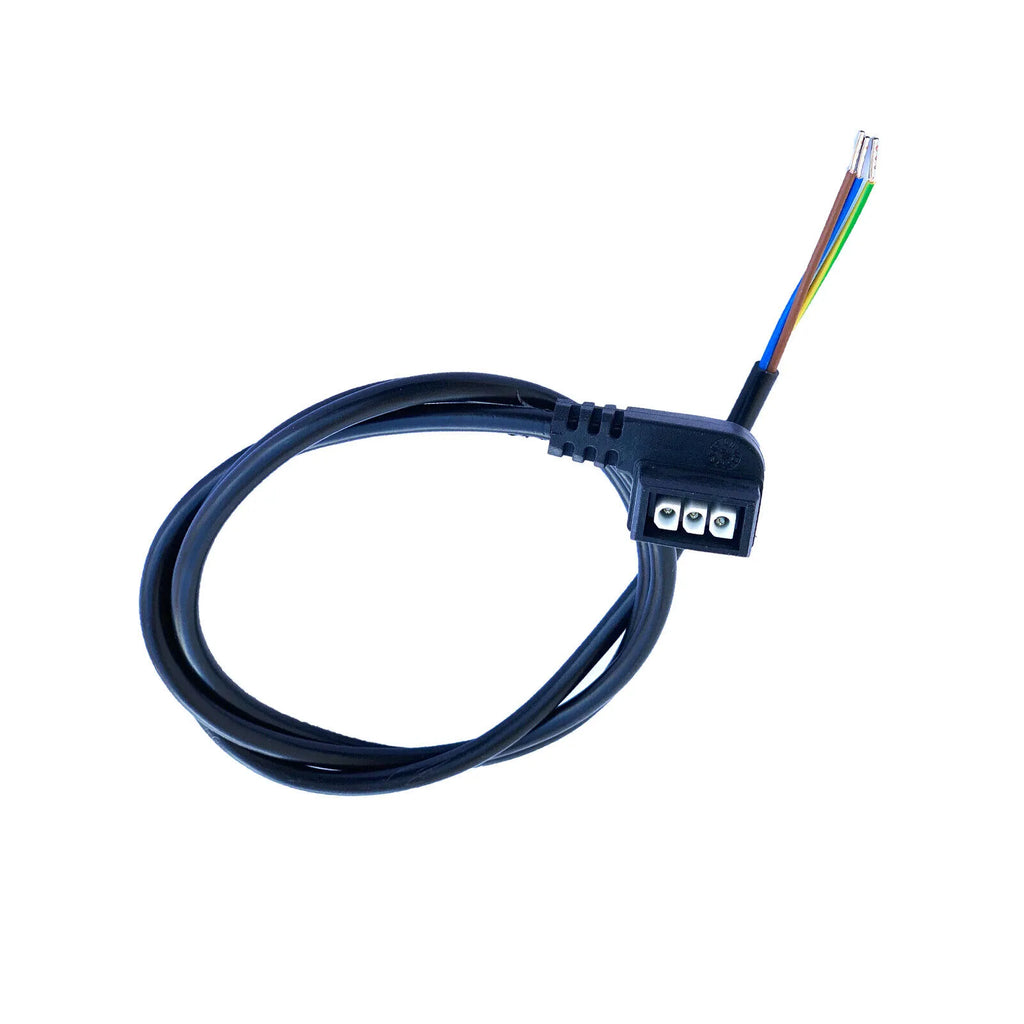

Ready-to-install EcoMix ENH001 heating circuit pump group with three-way mixer, Environ END05 actuator and Environ EcoStar 25/6 high-efficiency pump. With power cable.

A notice:

In order to integrate this product into the house installation, an intervention in the 230 volt network is necessary.
Work on the 230 volt network may only be carried out by a qualified electrician (according to VDE 0100).

Manufacturer information:

ENVIRON Energie- und Umwelttechnik GmbH & Co. KG

Robert-Bosch-Straße 9

78048 Villingen-Schwenningen

Phone: +49 7705 977 5803

E- Mail: info@environgroup.de
Website: https://environ-solutions.de/
