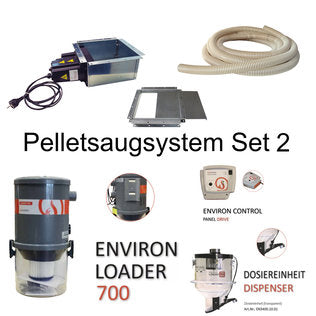

Environ pellet suction system configuration 2- pellet removal by VakuMatik removal unit

✓ Ready-to-connect pellet suction system ✓

scope of delivery
• Environ VakuMatik extraction unit with motorized nozzle
• closure module/maintenance module for the removal unit
• Suction turbine with integrated filter system and dust container LOADER 700
• Environ CONTRO PANEL DRIVE control system
• Dosing unit DISPENSER with integrated sensor
• 20 m ENVIRON PU pellet hose Ø 50 mm

EN3400.00.06 Extraction unit Environ VakuMatik

This extraction unit was developed for the safe and reliable extraction of solid fuels from all types of funnel-shaped storage. A steel bolt rotates before extraction using a so-called pneumatic to prevent clogging.

In particular, it can be perfectly combined with the Environ suction systems. The Environ VakuMatik has been designed to be easy to install, reliable and user-friendly.

The fuel collection box is made of high-quality galvanized sheet metal. The motorized unit is made of high-strength plastic. The side openings allow easy inspection of the extraction unit. A reliable motor ensures operation even under difficult conditions.

✓ It can be combined with all Environ suction unit control units and accessories.

▸ Power connection: 230V
▸Frequency: 50 Hz
▸Protection level: IP40
▸Power: 15W
▸Speed: 12 rpm
▸Nominal torque: 5 Nm


EN1000.50.01 LOADER700 suction turbine

✓The Environ LOADER700 is a central, powerful suction turbine for pellets and other granular fuels.

✓The suction system is suitable for single-pipe fuel systems with free air outlet.

✓The cable connections are on the right side. The dust container is made of high-strength transparent plastic.

✓Thanks to its single-phase electric motor with brushes and direct cooling, the ENVIRON LOADER 700 has a high suction power. Despite this high suction power, the ENVIORN LOADER 700 is particularly quiet.

✓The class E11 polyester filter offers a large filter area and can be washed with water.


Characteristics:

▸The Environ LOADER700 is universal.
▸It can be installed on all existing or newly installed boilers.
▸The dimensions are reduced to a minimum.
▸ The connection between the dosing unit and the central vacuum unit is eliminated as it is integrated into a single body.



The ENVIRON LOADER700 has the quality, performance and reliability of all Environ products.

Technical data suction turbine LOADER700:

▸Dust inlet: Ø mm 50
▸Air outlet: Ø mm 50
▸Protection level: IP44
▸Power supply: 230 V
▸Frequency: 50/60 Hz
▸Engine power: 1.3 kW
▸Consumption: 5.4 A
▸Maximum air flow: 234 m3/h
▸Filter surface: 6700 cm2
▸Container capacity: 18l
▸Filtration class: E11
▸Air silencer: Yes
