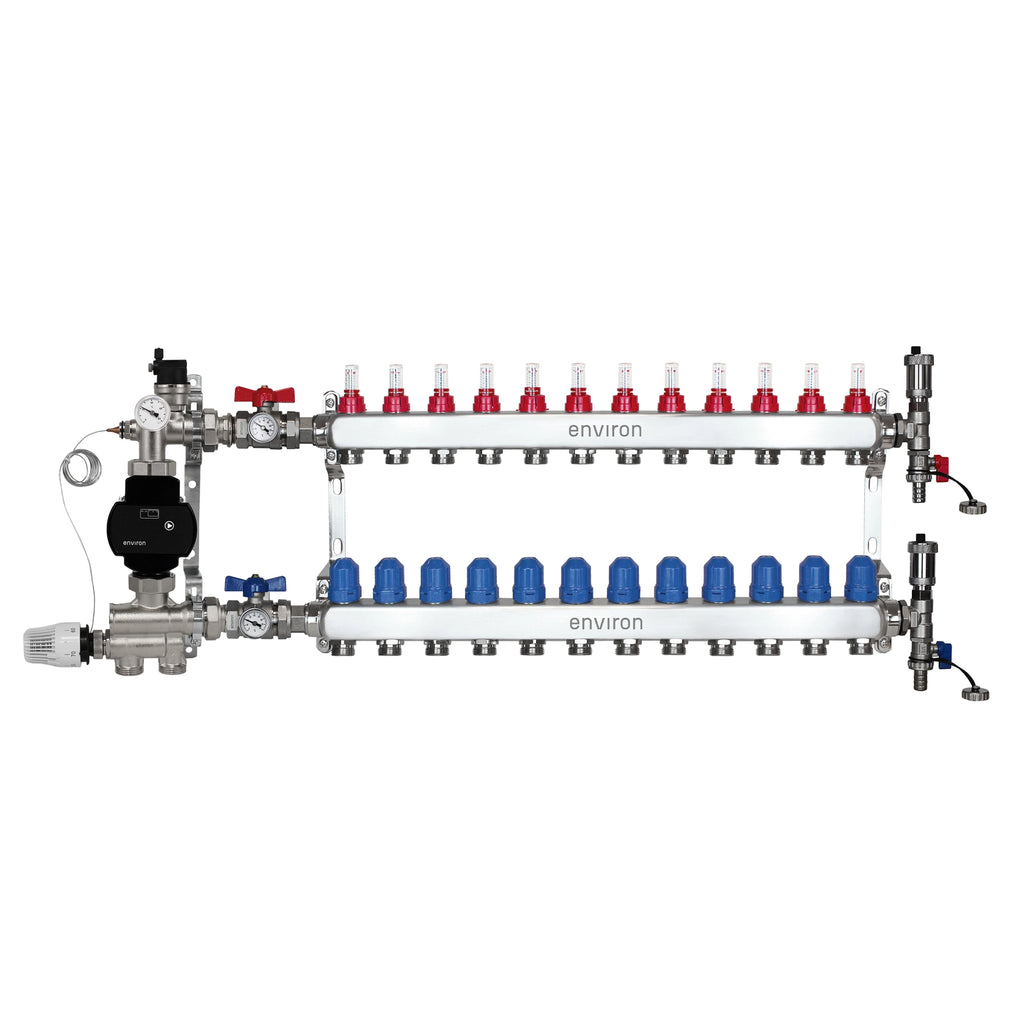

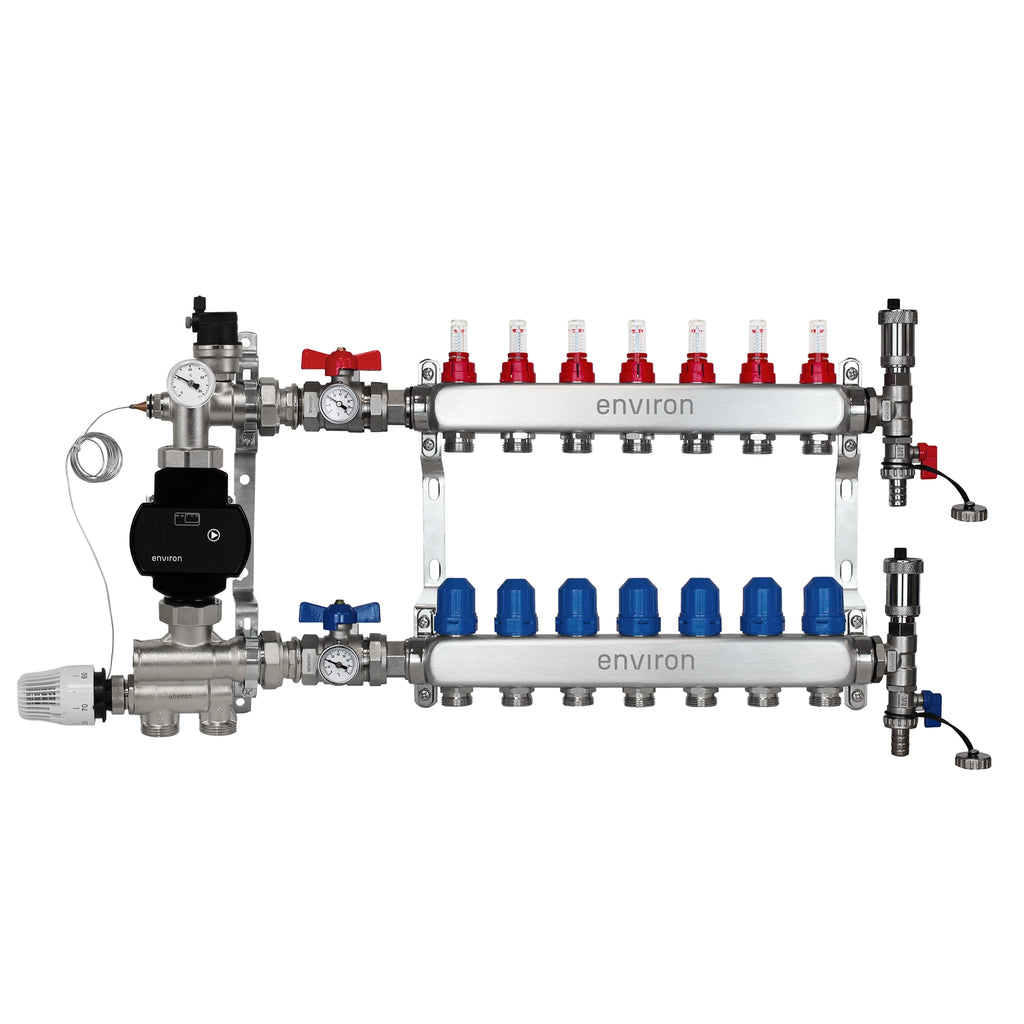

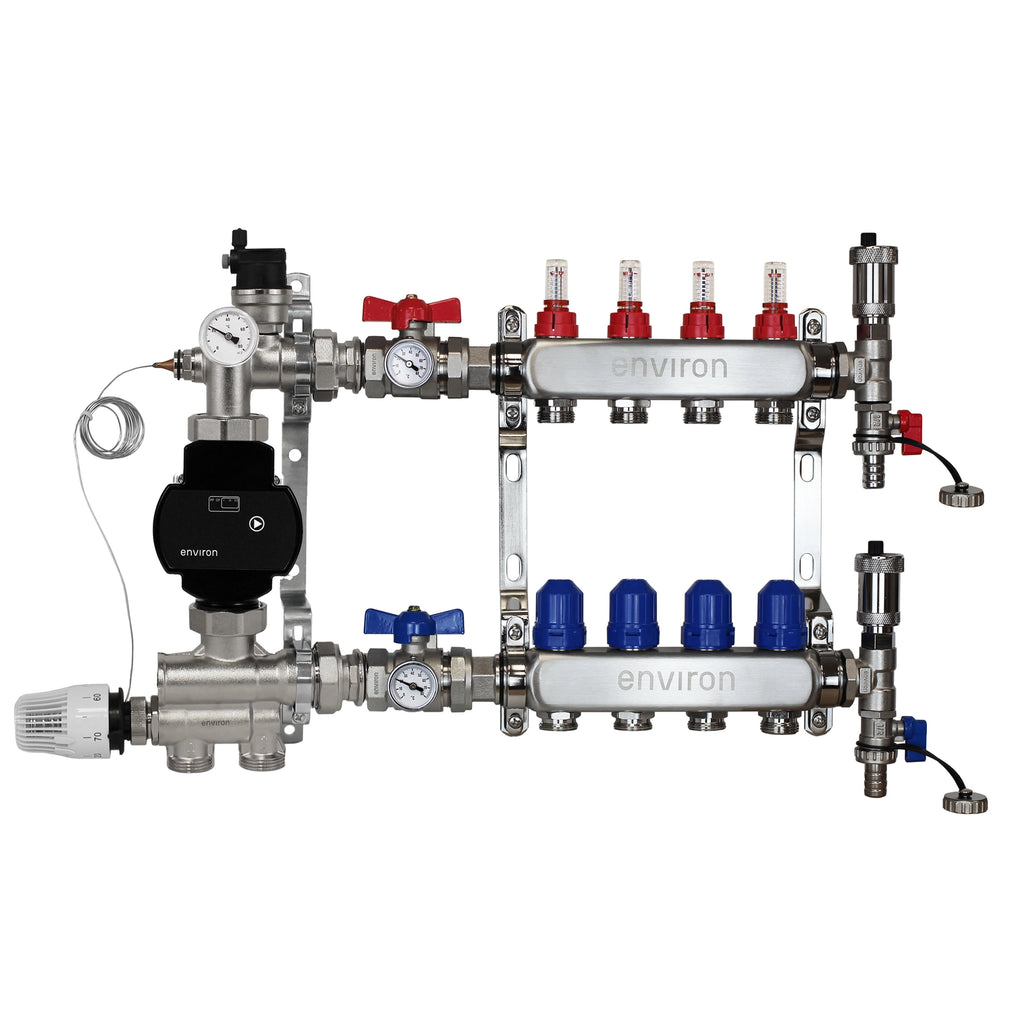

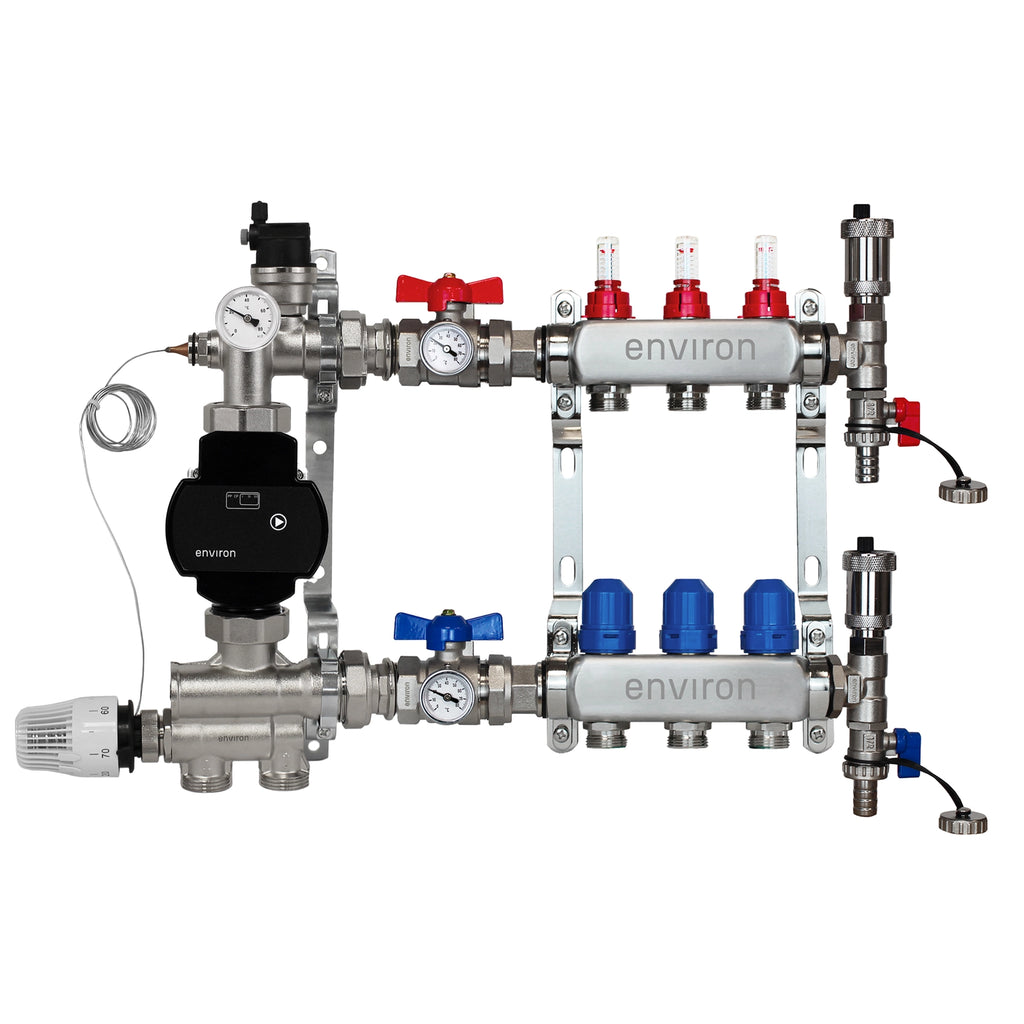

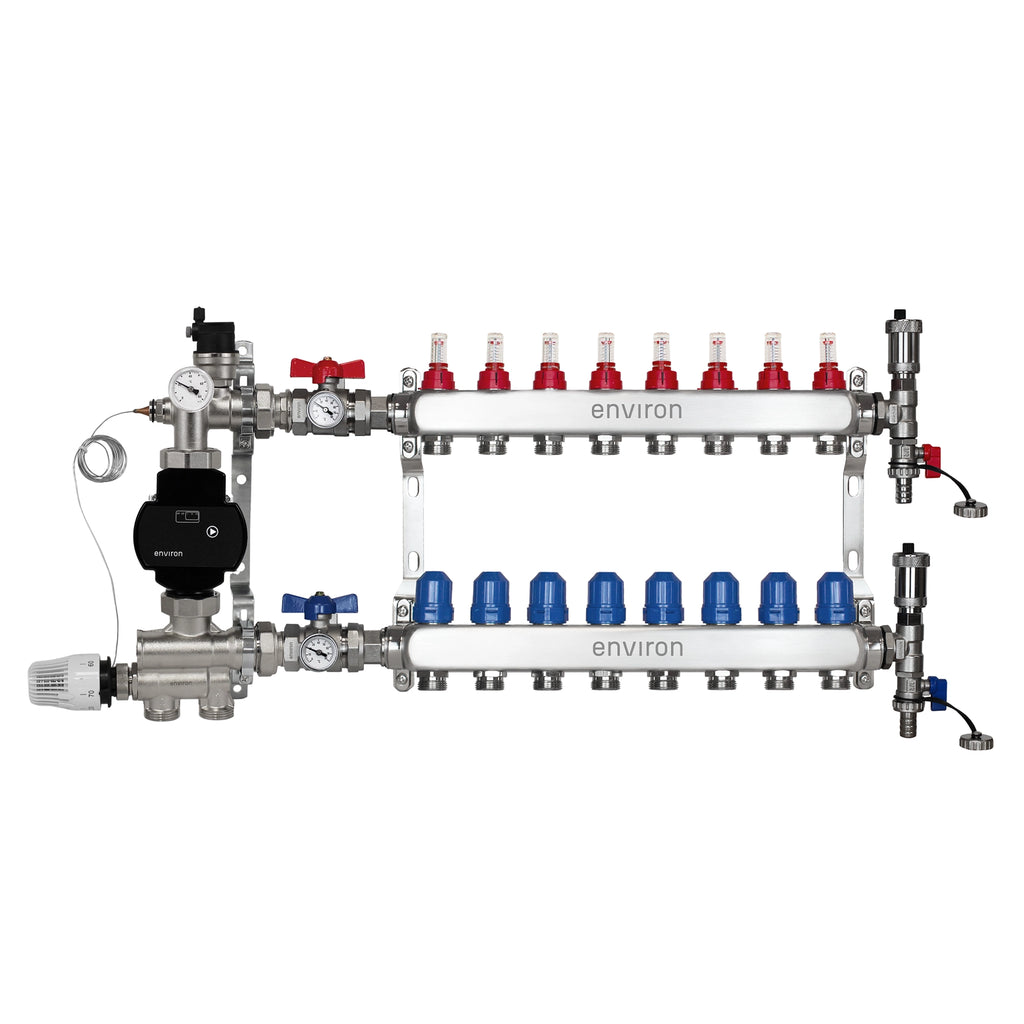

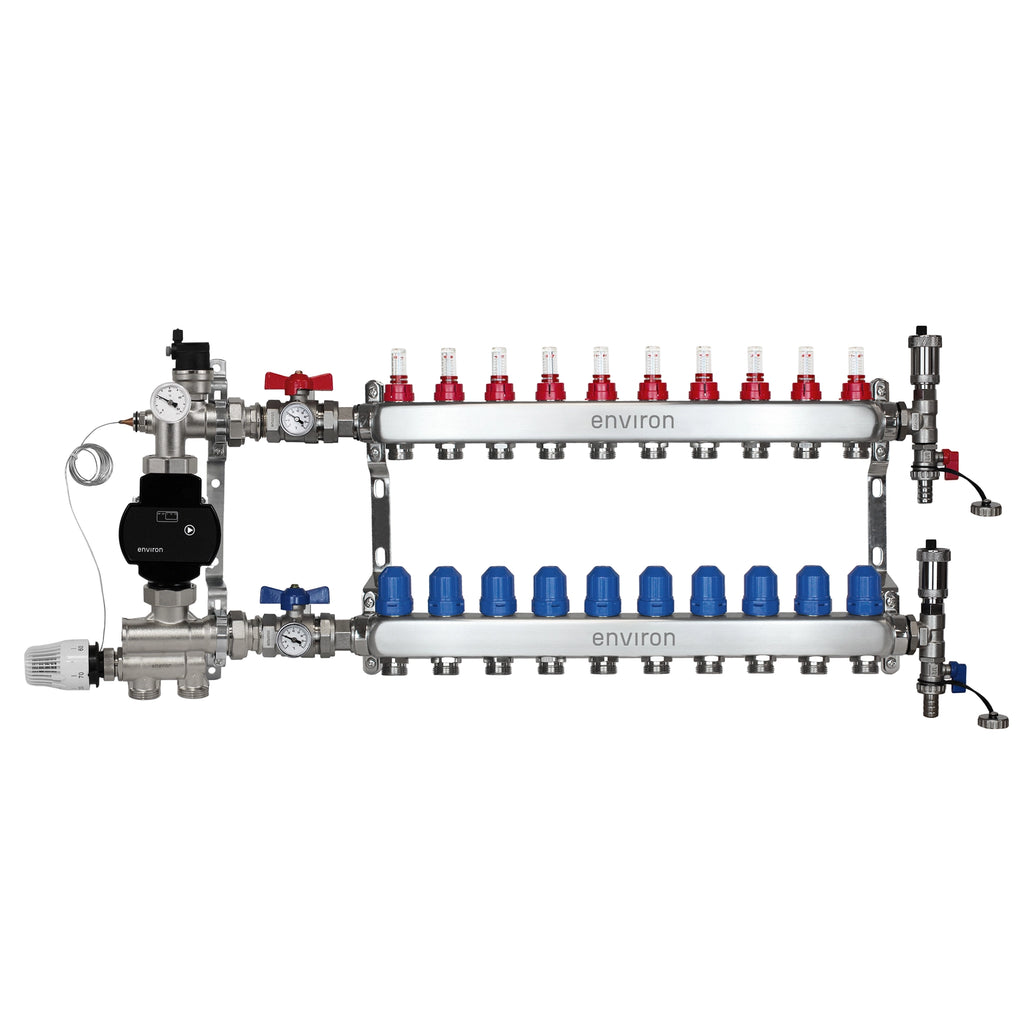

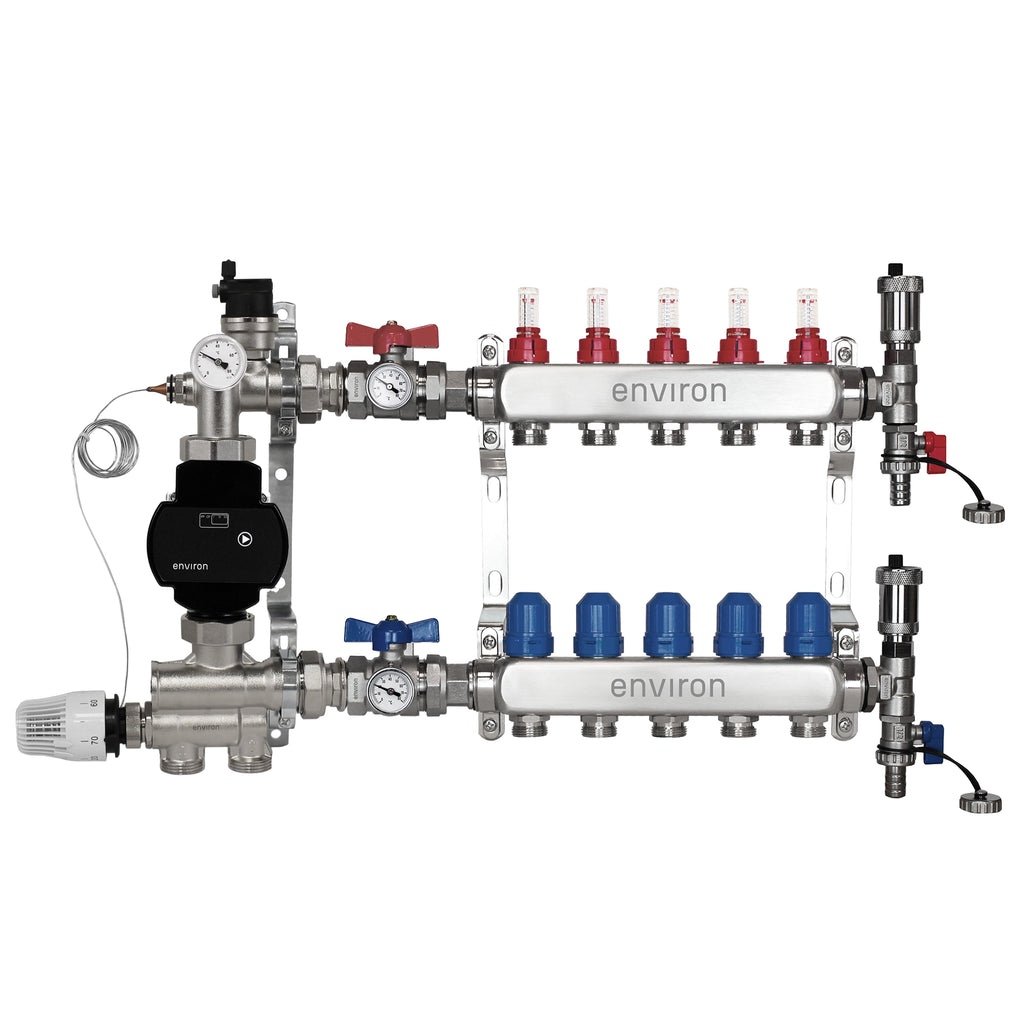

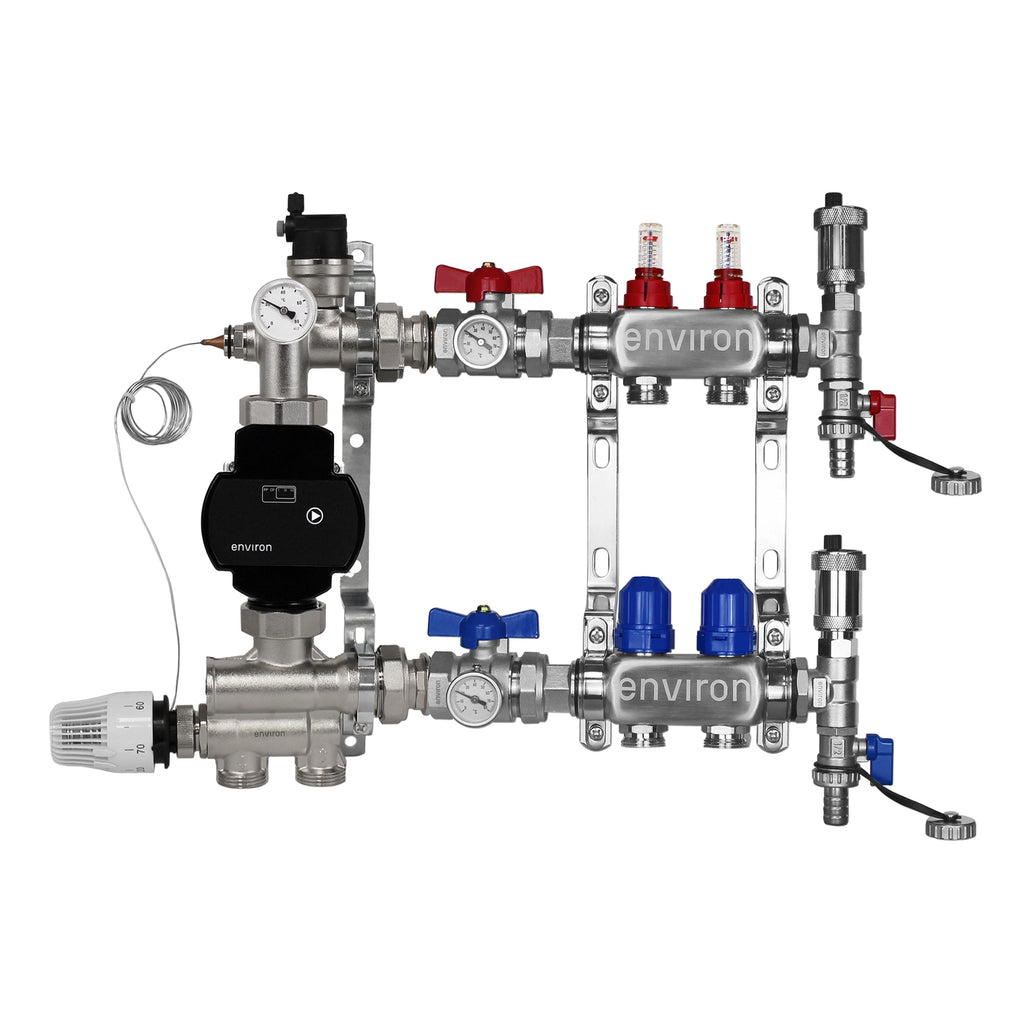

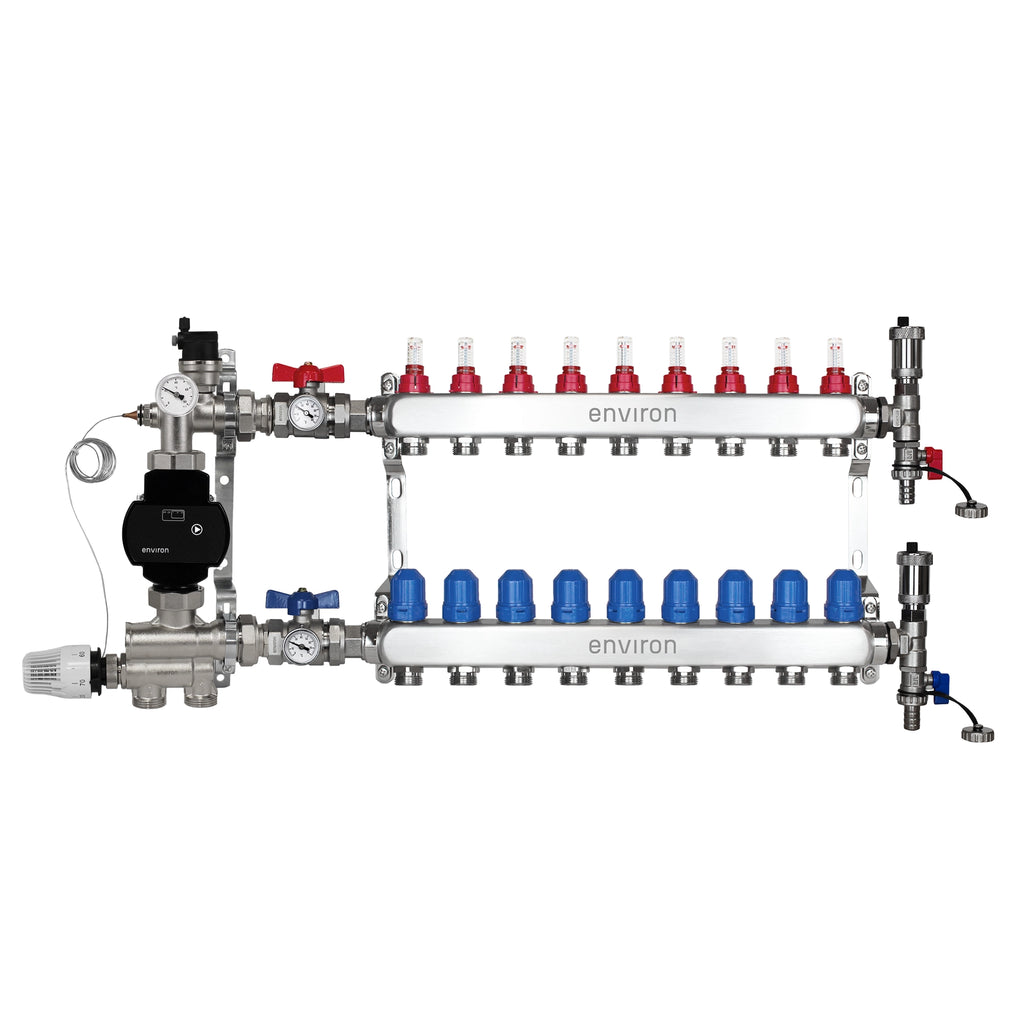

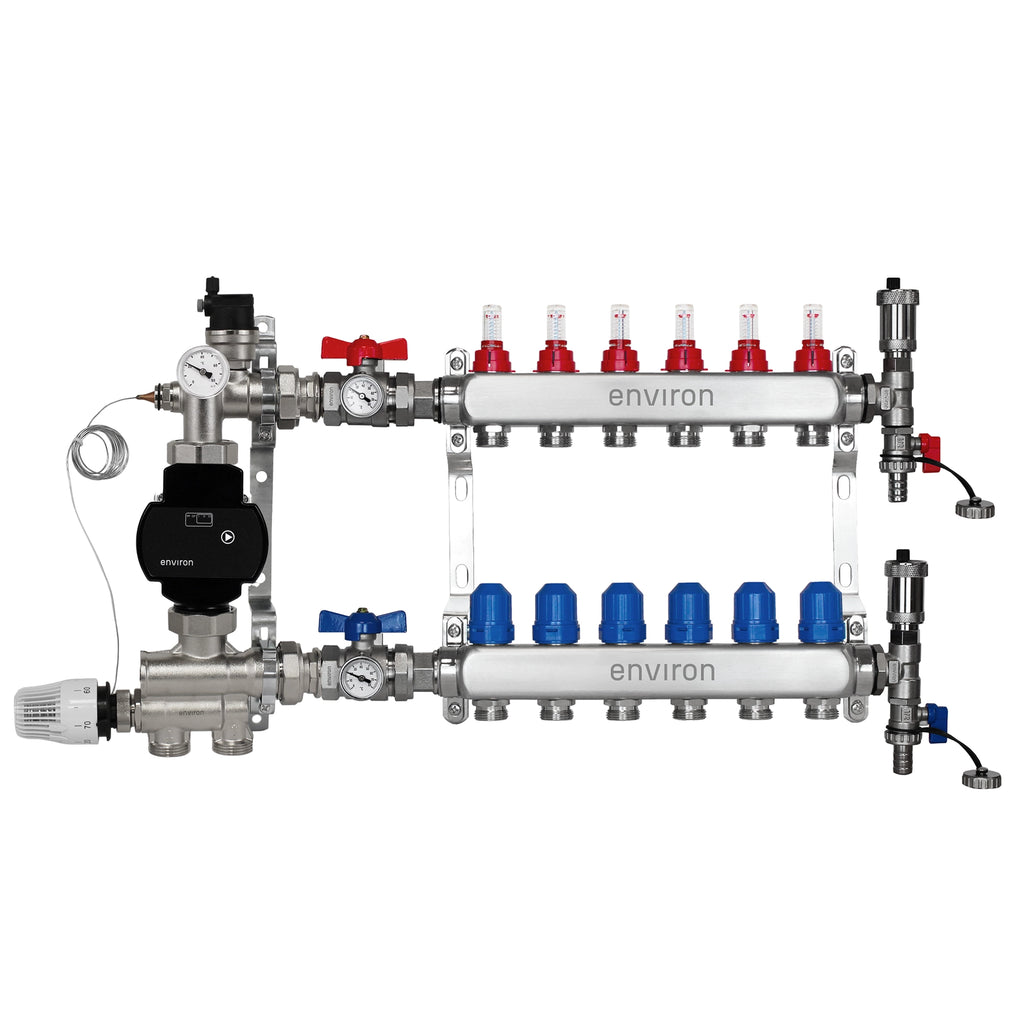

Discover the first-class 1 inch heating circuit distributor for underfloor heating made of high-quality stainless steel. With its compact design, excellent sound insulation and effortless installation, this distributor is particularly impressive in conjunction with underfloor heating and cooling systems.
The integrated flow meters enable precise adjustment of the water quantities, which ensures optimal hydraulic balancing for each individual circuit. These flow meters are made in Germany and guarantee the highest quality.
Thanks to the offset arrangement of the flow and return lines, the distributor is ideal for easy pipe installation. Each heating circuit distributor is carefully tested for function and pressure by the manufacturer before leaving the factory to ensure maximum safety.
This distributor can be used for both manual control and electronic individual room control with appropriate actuators and room thermostats. Our actuators with the M30 x 1.5 adaptation are perfectly matched to this distributor.
Optimize your underfloor heating with the premium heating circuit distributor for efficient and comfortable room temperature control. Discover quality and reliability for your heating system!
✓ Robust profile pipe distributor made of stainless steel (not welded) according to DIN EN 1264-4
✓ Easy connection to the heat generator via 1" internal thread (transition nipple 1" external thread included in delivery)
✓ Adjustable flow meter (2.5 l/min) in the supply line with shut-off valve
✓ Return bar with integrated valves and manual adjustment cap
Product features:
✓ Robust profile pipe distributor made of stainless steel (not welded) according to DIN EN 1264-4
✓ Easy connection to the heat generator via 1" internal thread (transition nipple 1" external thread included in delivery)
✓ Adjustable flow meter (2.5 l/min) in the supply line with shut-off valve
✓ Return bar with integrated valves and manual adjustment cap
Accessories included:
• Soundproofed steel consoles
• 2 pieces of transition nipples 1" external thread
• 2 distributor holders
• 2 ball valves 1"
For each heating circuit:
• 1 flow indicator
• Valve inserts 30 x 1.5 mm (compatible with Environ, Heimeier, Salus, Oventrop and more)
• Pipe connections for Eurocone 3/4"
• Max. operating pressure: 5 bar
Technical data fixed value control set:
This fixed value control set is used to constantly maintain the flow temperature you have set for underfloor heating systems and radiators.
This is installed in front of the heating circuit distributor and, with the help of the thermostat head, ensures that the preset temperature is maintained exactly.
Ideal for subsequently installed underfloor heating circuits.
Technical data fixed value control set:
▸ Adjustable temperature: 20-70°C
▸ Pump length: 130mm
▸ Maximum medium temperature at the inlet: 110 °C
▸ Minimum medium temperature at the inlet: 7 °C
▸ Max. pressure: 10 bar
▸ Connections: 1” AG
▸ Brass: CW 617N O - Nickel-plated
▸ Seals: EPDM 70 SH

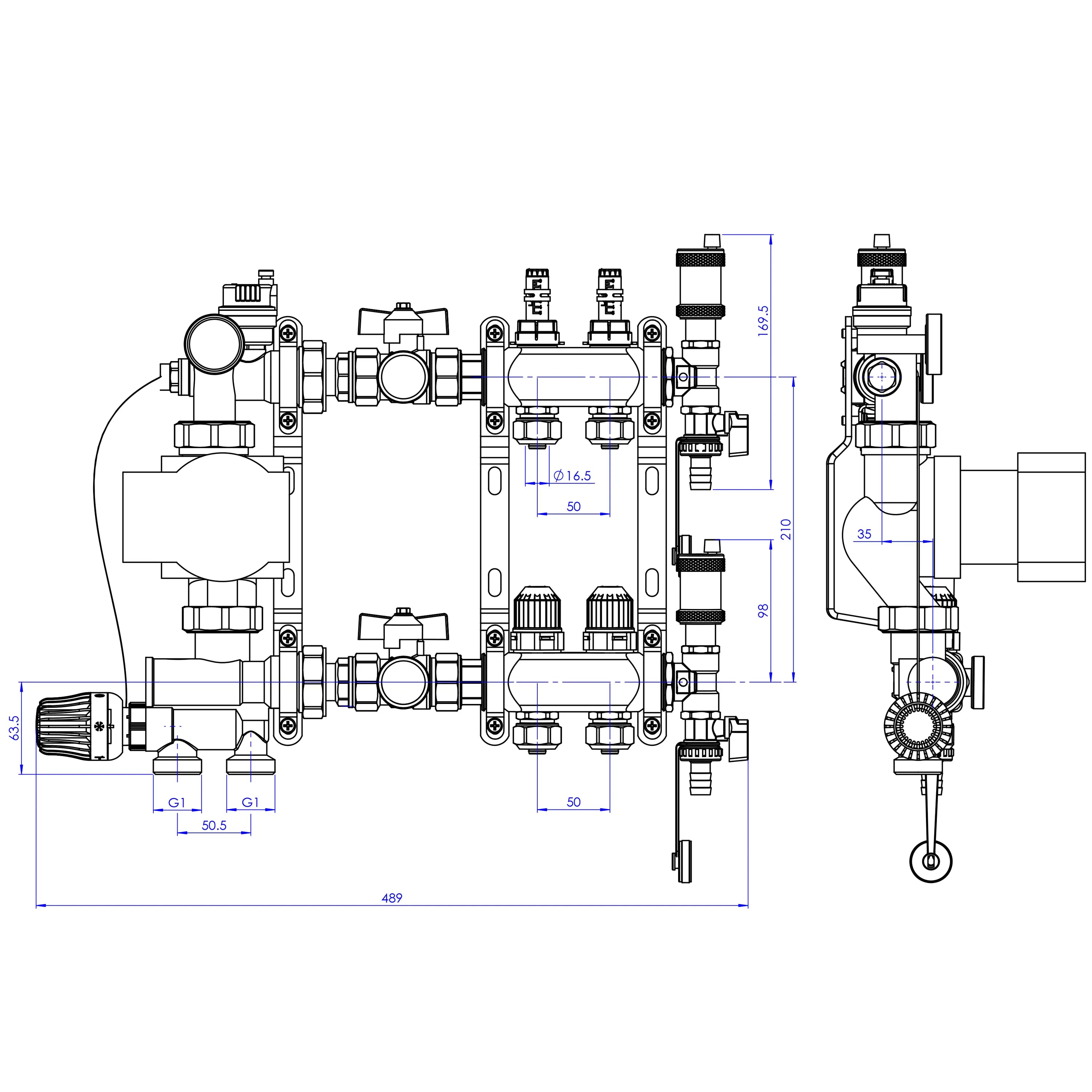

▸ Axle dimension forward / return secondary: 210mm
▸ Temperature display: 0-80°C
✓ with integrated check valve
Technical data Environ EcoStar 25/6 high-efficiency pump:
▸ Max. delivery height: 6m
▸ Max flow rate: 3.6m³/h
▸ Temperature range: -20°C to +110°C
▸ Power consumption: 3W-43W
▸ Operating pressure: max. 10 bar
▸ Electrical connection: 230V/50HZ
▸ Supply voltage: 220~240V, 50/60Hz
▸ Protection level: IP44
▸ Insulation class: H
▸ EMC standard: EN61000-6-1 and EN61000-6-3
A notice:
In order to integrate this product into the house installation, an intervention in the 230 volt network is necessary.
Work on the 230 volt network may only be carried out by a qualified electrician (according to VDE 0100).
