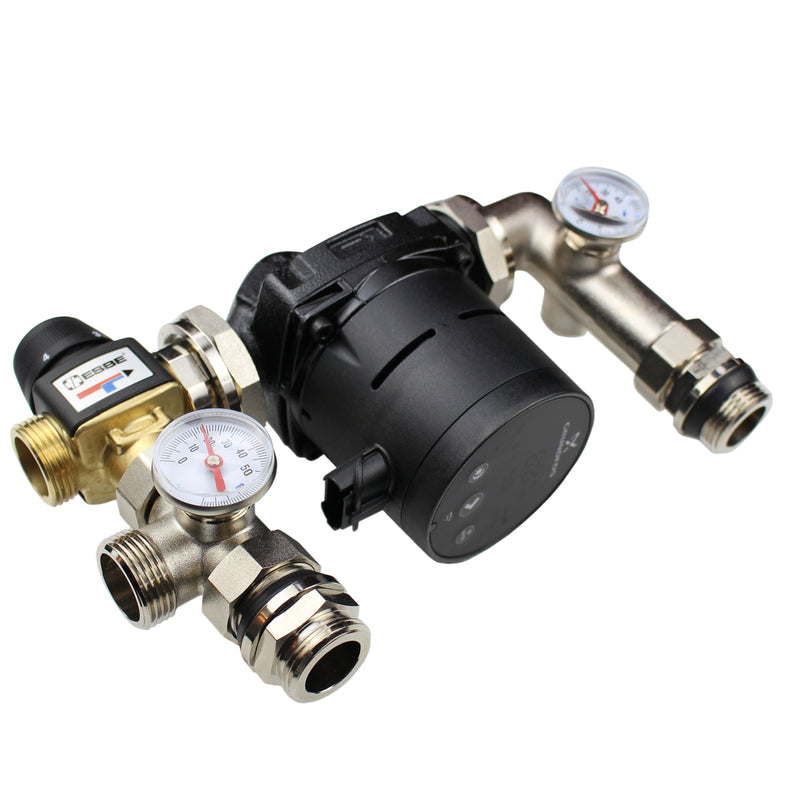

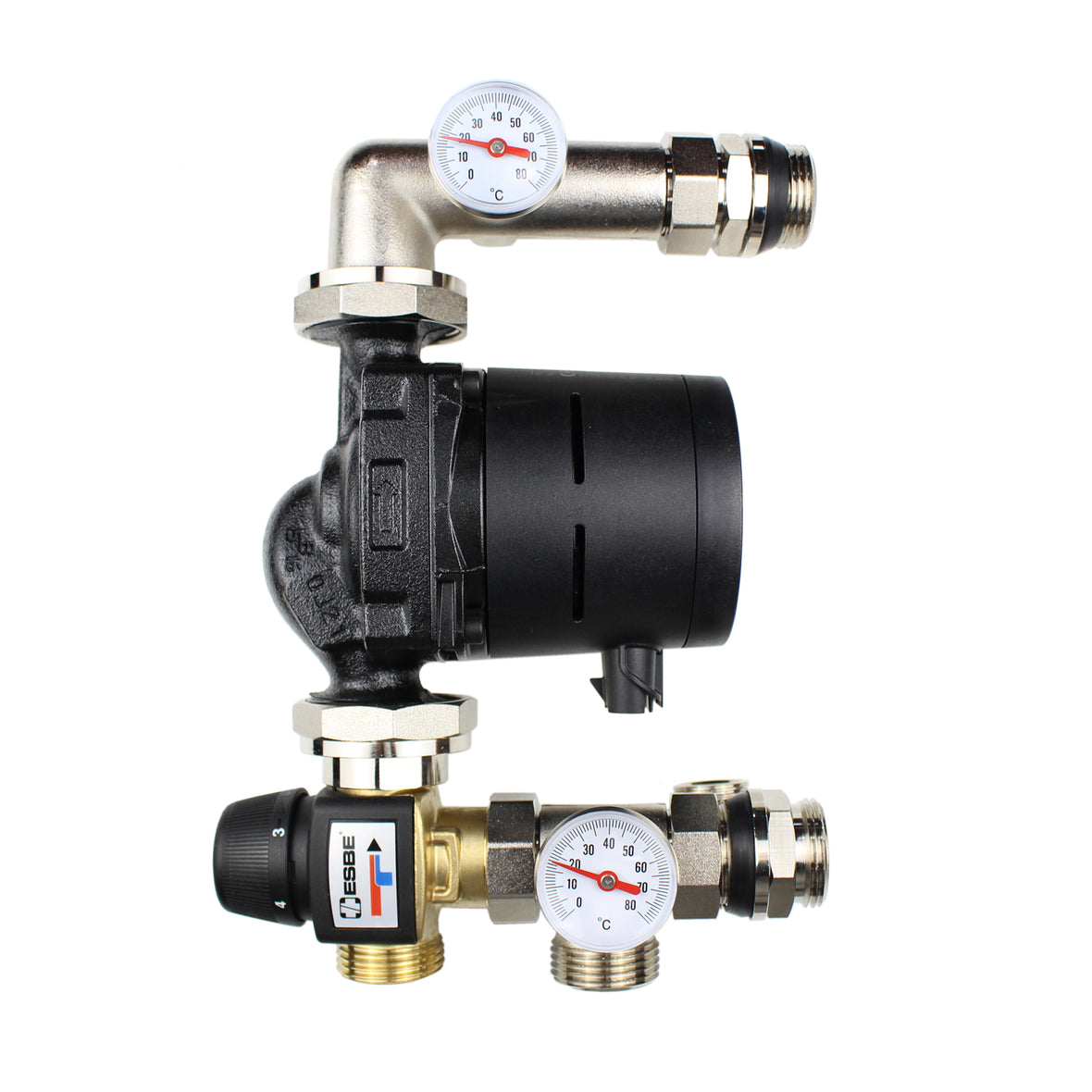

This fixed value control set is used to constantly maintain the flow temperature you have set for underfloor heating systems and radiators.
This is installed in front of the heating circuit distributor and, with the help of the thermostat head, ensures that the preset temperature is maintained exactly.
Ideal for subsequently installed underfloor heating circuits.
Technical data fixed value control set:
▸ Adjustable temperature: 30-65°C
▸ Pump length: 130mm
▸ Maximum medium temperature at the inlet: 110 °C
▸ Minimum medium temperature at the inlet: 7 °C
▸ Max. pressure: 10 bar
▸ Connections: 1” AG
▸ Brass: CW 617N O
▸ Seals: EPDM 70 SH
▸ Axle dimension forward / return secondary: 210mm
✓ with integrated check valve
Technical data Grundfos Alpha 2.2 25/6 high-efficiency pump:
▸ Max. delivery height: 6m
▸ Max flow rate: 2.5m³/h
▸ Temperature range: max. 110°C
▸ Power consumption: 5W-45W
▸ Operating pressure: max. 10 bar
▸ Installation length: 130 mm

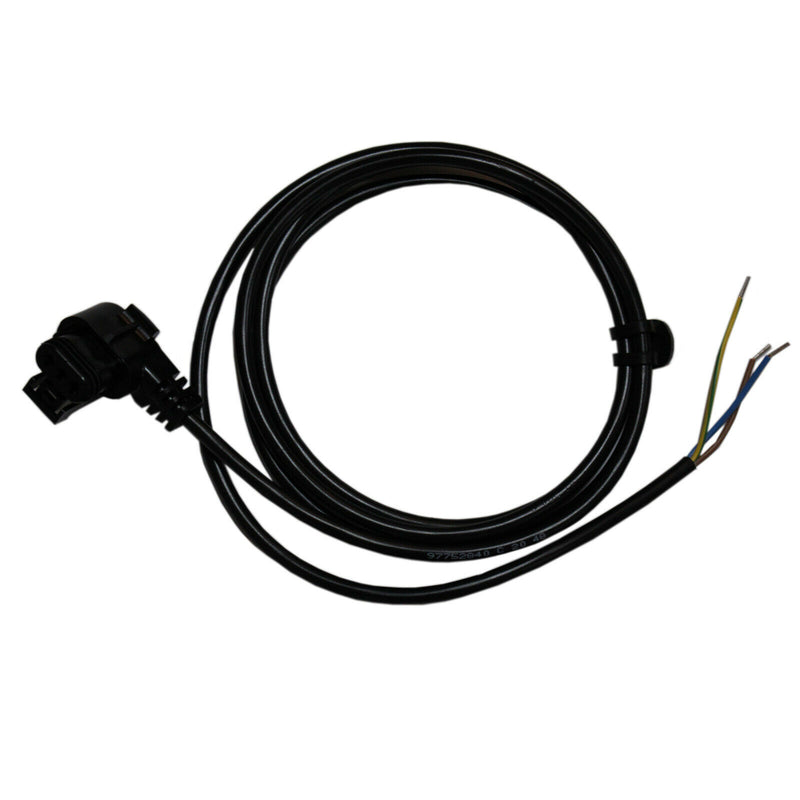

▸ Electrical connection: 230V/50HZ
Manufacturer information:
ENVIRON Energie- und Umwelttechnik GmbH & Co. KG
Robert-Bosch-Straße 9
78048 Villingen-Schwenningen
Phone: +49 7705 977 5803
E- Mail: info@environgroup.de
Website: https://environ-solutions.de/
