Hygienic stratified combination storage tank without heat exchanger - EH 750 L

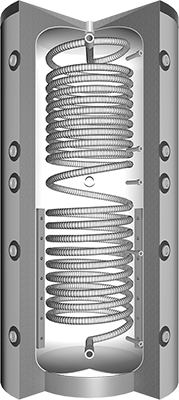

Hygienic layered combination storage tank EH 750 L – Compact heating water storage without heat exchanger

The EH 750 L is a space-saving hygienic stratified combination storage tank that was specially designed for the storage of heating water and hygienic drinking water heating . Thanks to its optimized stratified channels , it enables efficient heat distribution and is ideal for use with wood heating systems, combined heat and power plants (CHP) and conventional heat generators .

Your benefits at a glance:

• Optimal heat stratification: 2 layer channels for maximum energy efficiency
• Hygienic hot water preparation: Stainless steel corrugated pipe (V4A 1.4404) for fresh hot water using the flow-through principle – Legionella prevention according to DVGW W551
• High-quality workmanship: Quality steel S235JR according to EN 10025 with corrosion protection
• Flexible installation: sensor terminal block for individual positioning of the temperature sensors
• Space-saving design: 750 litre capacity , ideal for smaller residential and commercial properties

Technical data:

• Volume: 750 liters
• Operating pressure accumulator: 3 bar (test pressure 4.5 bar)
• Operating pressure stainless steel corrugated pipe: 6 bar
• Max. operating temperature: 95 °C
• Insulation: Ecoline fleece (Made in Germany), 100 mm thick
• ErP class: C, heat loss only 127 W

⚠ Note: Only suitable for heat pumps to a limited extent. For maximum efficiency, we recommend the EHSWP-800L and EHSWP-950L models specially developed for heat pumps.

Areas of application:

Ideal for wood heating systems, cogeneration plants and conventional heat generators in small apartment buildings, commercial properties and industrial applications .

ErP data - EH - 750 L

Manufacturer information:

Juratherm GmbH
Wilhelm-Busch-Str. 4-6
95447 Bayreuth
Germany
Telephone: +49 (0) 921 / 15 13 44 - 0
E-Mail: info@juratherm.com
