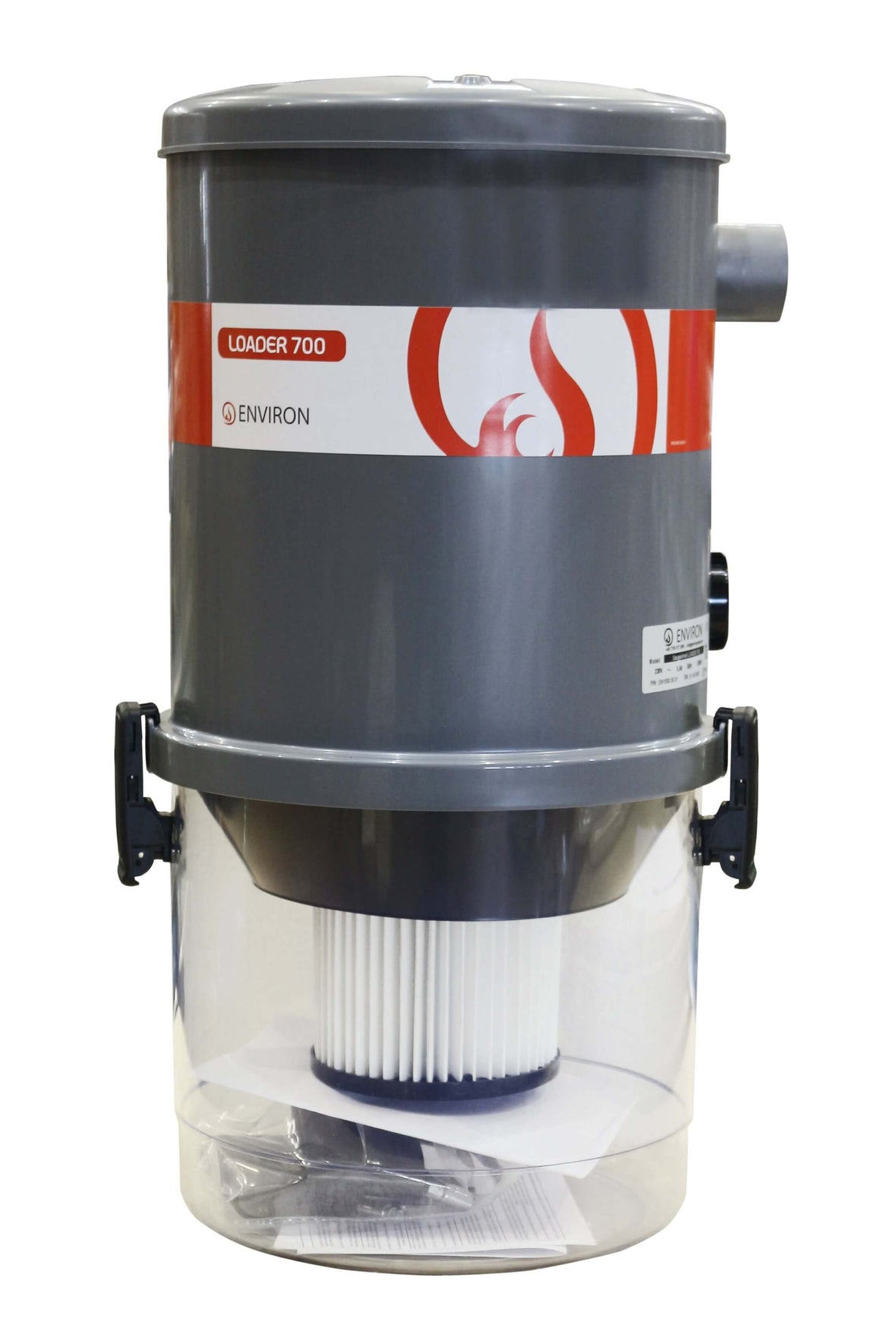

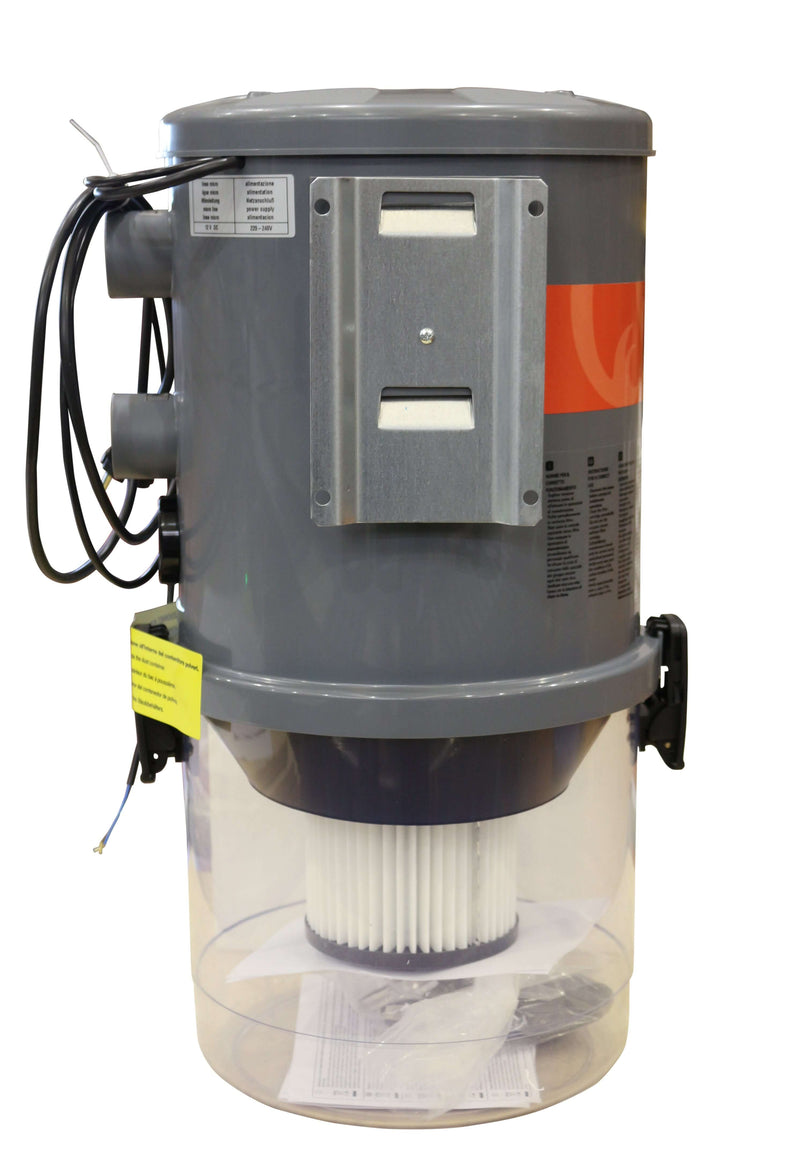

The ENVIRON LOADER 700 is a central, powerful suction system for pellets and other granular fuels. This system is particularly suitable for single-pipe fuel systems with free air outlet and offers pipe connections on the right-hand side. The dust container is made of high-strength transparent plastic.
Thanks to the single-phase electric motor with brushes and direct cooling, the ENVIRON LOADER 700 has impressive suction power while maintaining low noise levels. The E11 class polyester filter offers large-area filtration and can be washed with water.
Product features:
- Universal applicability for existing or newly installed boilers.
- Compact dimensions for minimal space requirements.
- Integrated dosing unit and central vacuum unit in one housing.
- Proven quality, performance and reliability of ENVIRON products.

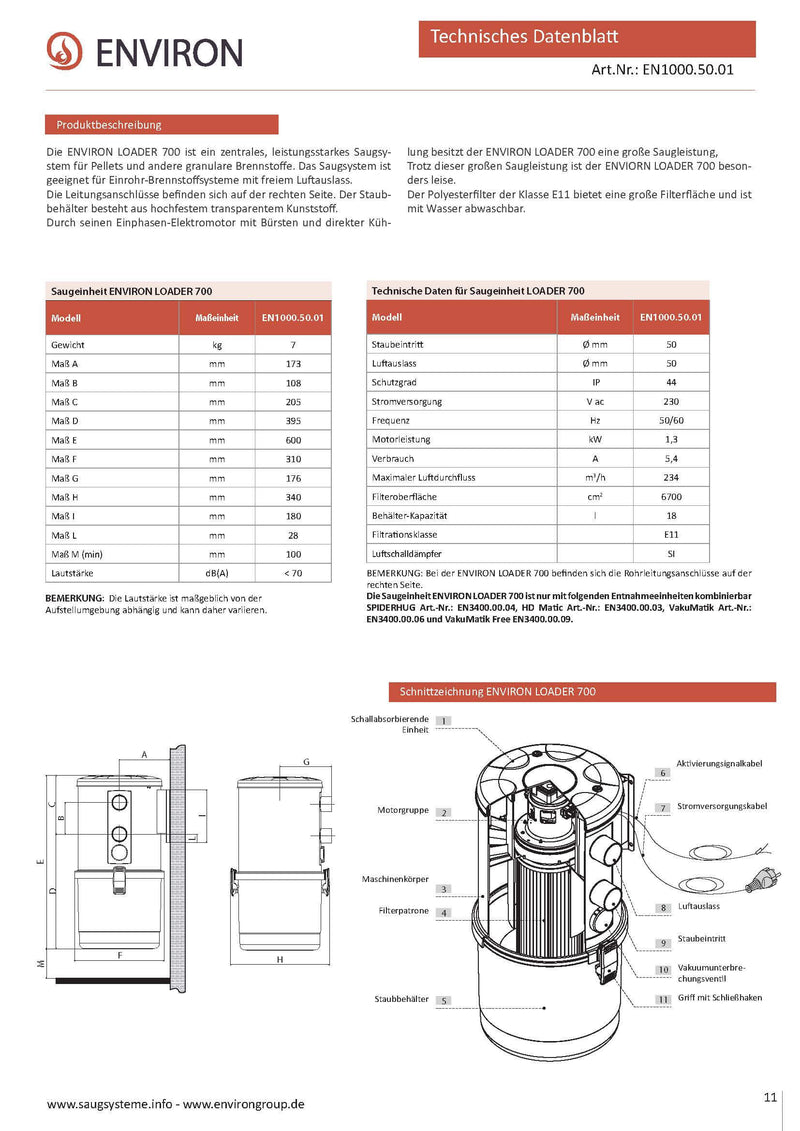

Technical data of the suction turbine ENVIRON LOADER 700:
- Dust inlet: Ø mm 50
- Air outlet: Ø mm 50
- Protection level: IP44
- Power supply: 230 V
- Frequency: 50/60 Hz
- Engine power: 1.3 kW
- Consumption: 5.4 A
- Maximum air flow: 234 m3/h
- Filter surface: 6700 cm2
- Container capacity: 18l
- Filtration class: E11
- Air silencer: Yes
Experience the versatility and efficiency of the ENVIRON LOADER 700 - the ideal solution for pellet and fuel suction systems. With a space-saving design and proven performance, this product sets standards and guarantees quality and reliability for your heating needs.
