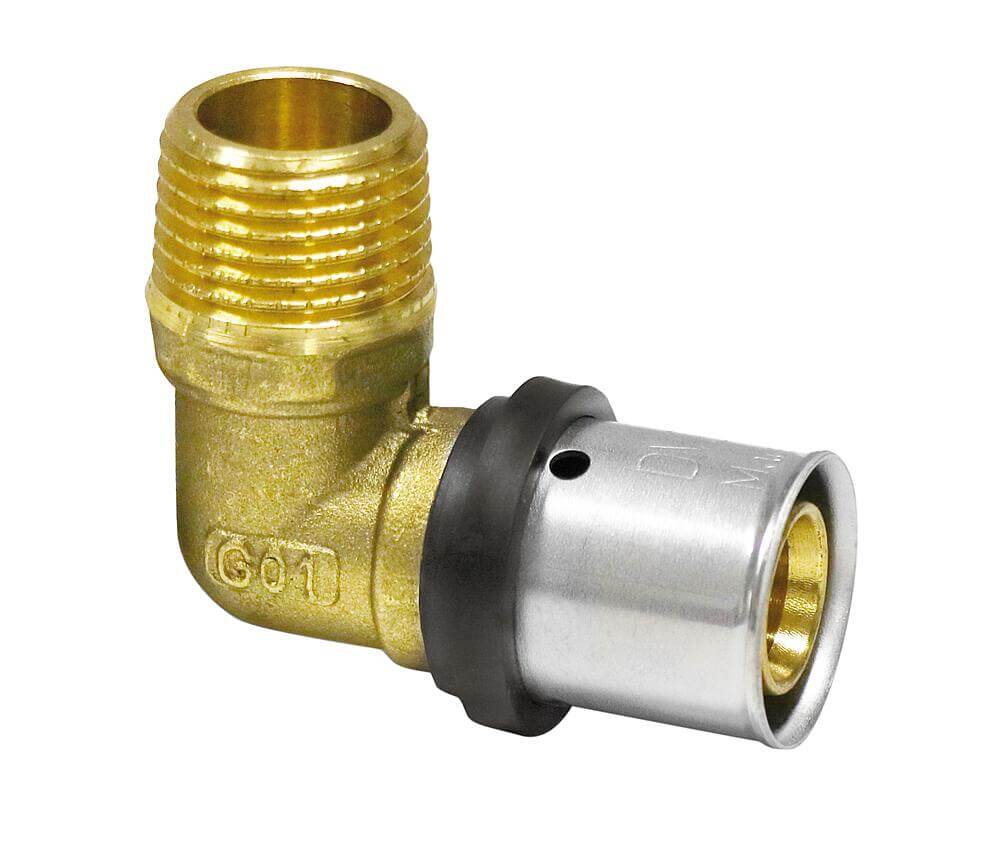

Pipetec press fitting multilayer composite pipe TH U transition angle AG 16 / 20 / 26 mm

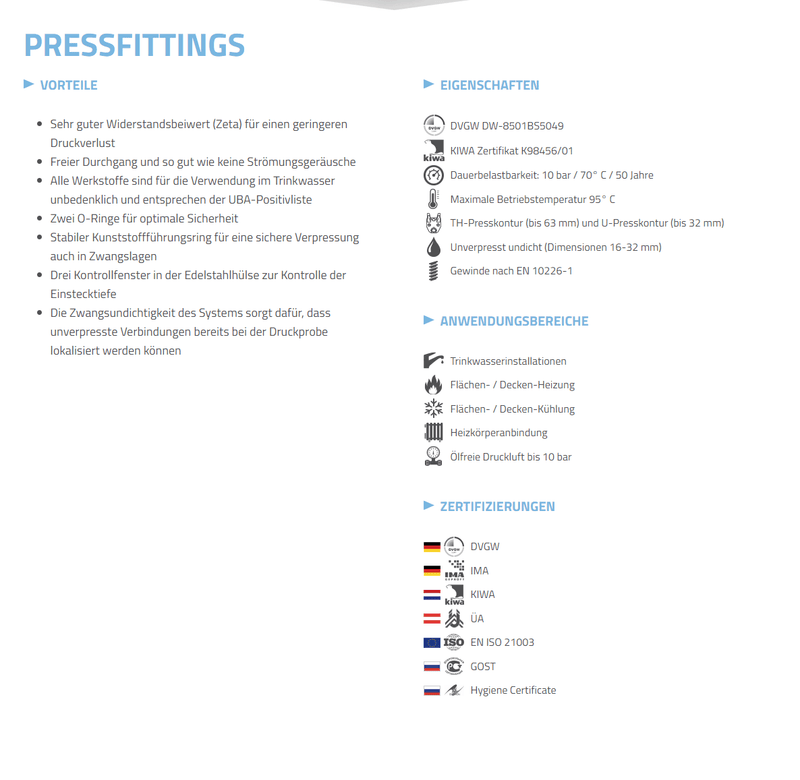

Advantages

✓ Very good drag coefficient (Zeta) for lower pressure loss
✓ Free passage and virtually no flow noise
✓ All materials are safe for use in drinking water and comply with the UBA positive list

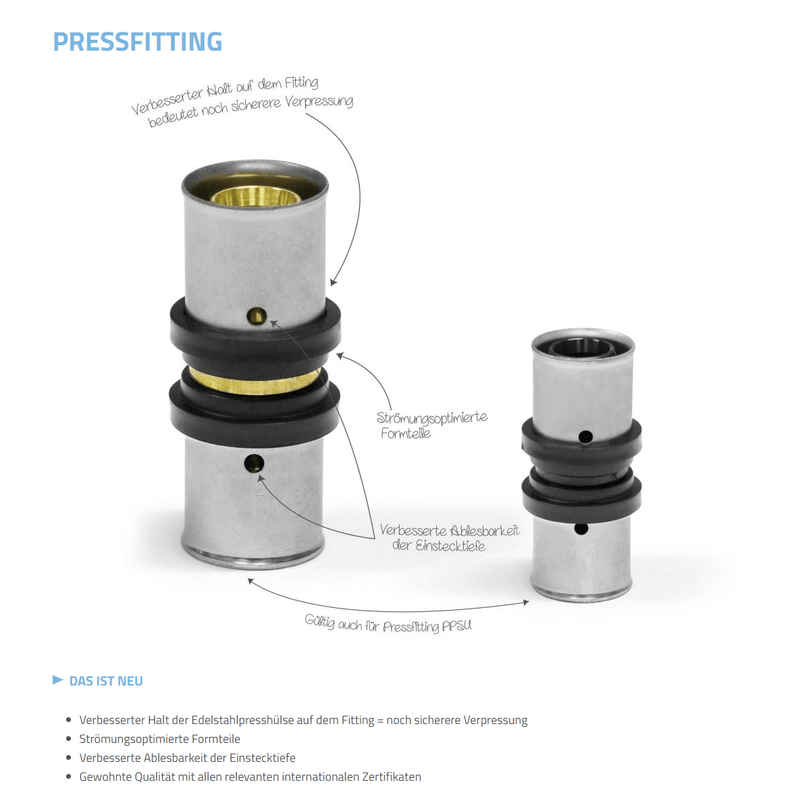

✓ Two O-rings for optimal safety
✓ Stable plastic guide ring for secure pressing even in awkward positions
✓ Three inspection windows in the stainless steel sleeve to check the insertion depth
✓ The forced leakage of the system ensures that unpressed connections can be located during the pressure test


Characteristics

✓ DVGW DW-8501BS5049
✓ KIWA certificate K98456/01
✓ Continuous load capacity: 10 bar / 70° C / 50 years
✓ Maximum operating temperature 95° C
✓ TH-press contour (up to 63 mm) and U-press contour (up to 32 mm)
✓ Leaking when unpressed (dimensions 16-32 mm)
✓ Thread according to EN 10226-1

areas of application

★ Drinking water installations
★ Surface / ceiling heating
★ Surface / ceiling cooling
★ Radiator connection
★ Oil-free compressed air up to 10 bar


Full compatibility with TH and U-press jaws up to dimension 32 x 3.0 mm.
Compatibility with U-press jaws is also possible with the previous model with two plastic rings.

certifications

✓ DVGW
✓ IMA
✓ ÜA
✓ EN ISO 21003
✓ GOST
✓ Hygiene Certificate

Manufacturer information:

Pipetec GmbH

Hinter Stöck 6

D-72406 Bisingen

Telephone: +49 (0) 74 76 / 667 99 32

E-mail:  info@pipetec.eu

Website: https://pipetec-deutschland.de/
