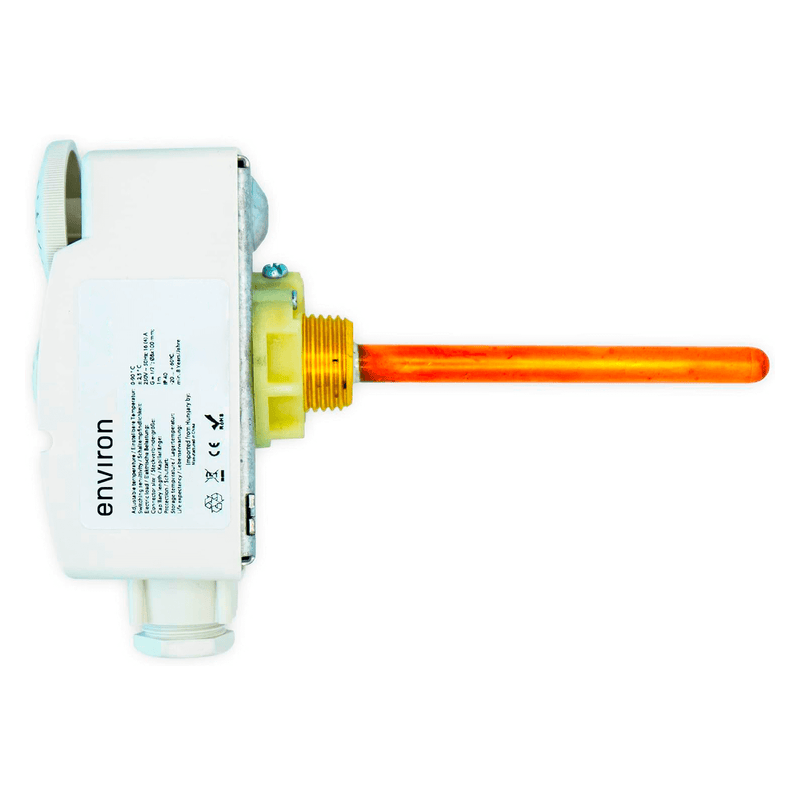

Discover the Environ immersion thermostat with a control range of 0 to 90°C and a practical 100mm immersion sleeve for easy installation. This thermostat is equipped with a changeover contact that can be used as an opener or closer and ensures a safe interruption of the circuit in the event of an impending thermal overload. Its robust construction and elastic tensioning band enable secure attachment to pipes.

Automate the processes of your heating systems with the analog immersion thermostat control range 0-90°C with immersion sleeve. This thermostat is specially designed for invasive heat measurement and determines the temperature of the flowing medium in the pipe directly via the sensor. Additional devices such as pumps and boilers can be switched on or off fully automatically in the adjustable temperature range from 0 to 90°C.

The Environ immersion thermostat offers automated monitoring of heating and cooling circuits as well as reliable protection against overheating and wear. It is ideal for commissioning underfloor heating systems, circulation and circulating pumps.

Exact measurements:
The thermostat's temperature sensor precisely measures the temperature of the medium without the housing coming into contact with the liquid. This enables more accurate readings compared to other thermostats.

Cleverly installed:
The compact thermostat automates your heating systems and not only ensures optimal monitoring of the circuits, but can also effectively reduce your energy consumption and costs.

Flexibly adjustable:
Using the rotary knob, an individual temperature range between 0 and 90°C can be set in which additional devices can be switched on or off. Please note the safety instructions for proper installation and to avoid product or health damage.

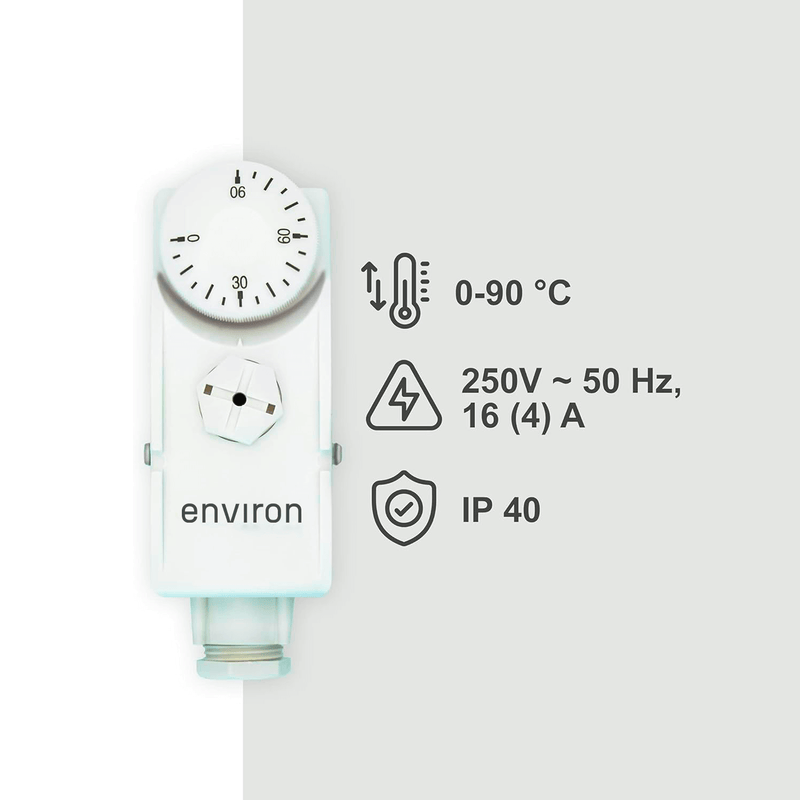

Technical data:

• adjustable range: 0 to 90 °C
• Switching sensitivity: ± 2.5 °C
• switchable voltage: 250 V AC, 50 Hz
• Load capacity: 16 A (4 A inductive load)
• Ambient temperature: max. up to 80 °C (probe: 110 °C)
• Storage temperature: -20 °C to +60 °C
• Electric shock protection class: IP 40
• Weight: 220 g

Manufacturer information:

ENVIRON Energie- und Umwelttechnik GmbH & Co. KG

Robert-Bosch-Straße 9

78048 Villingen-Schwenningen

Phone: +49 7705 977 5803

E- Mail: info@environgroup.de
Website: https://environ-solutions.de/
