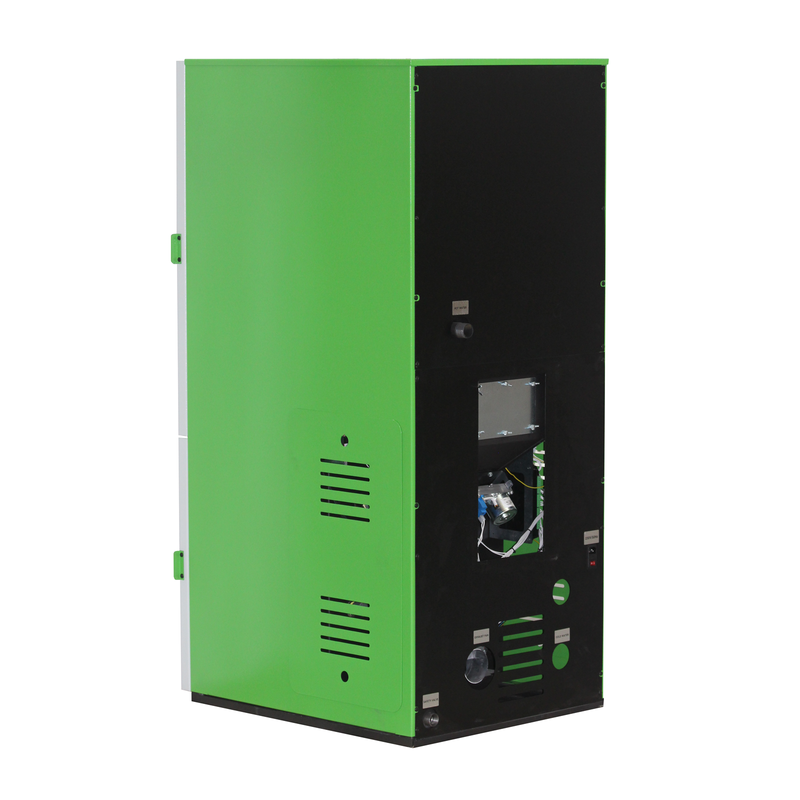

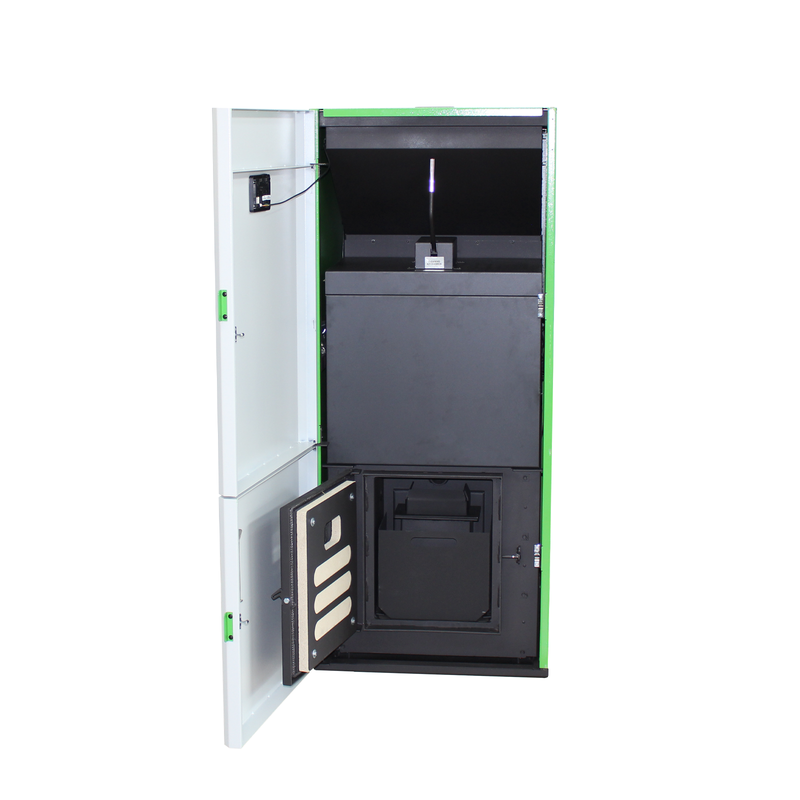

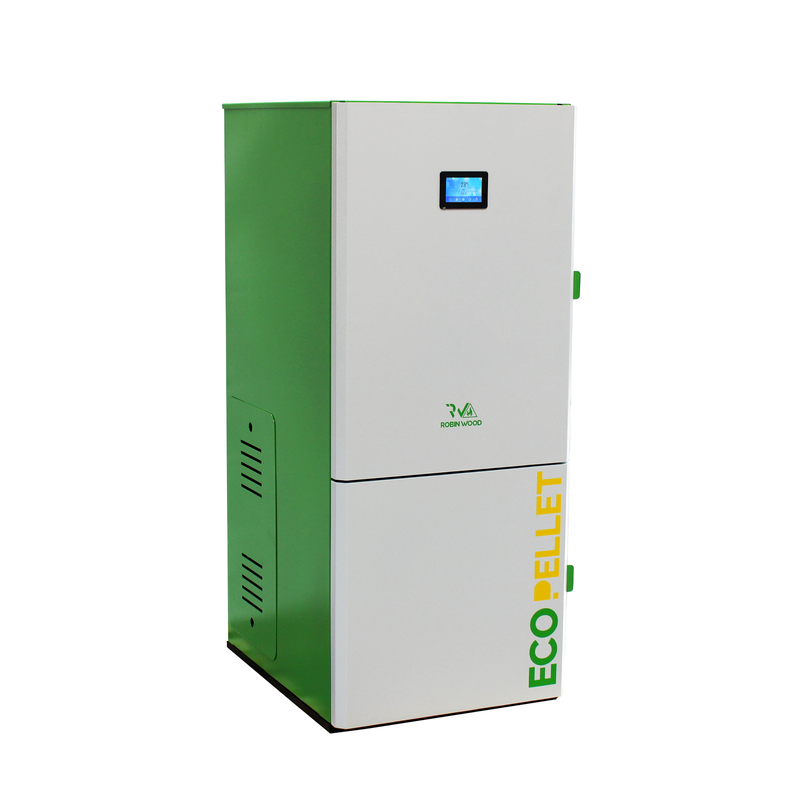

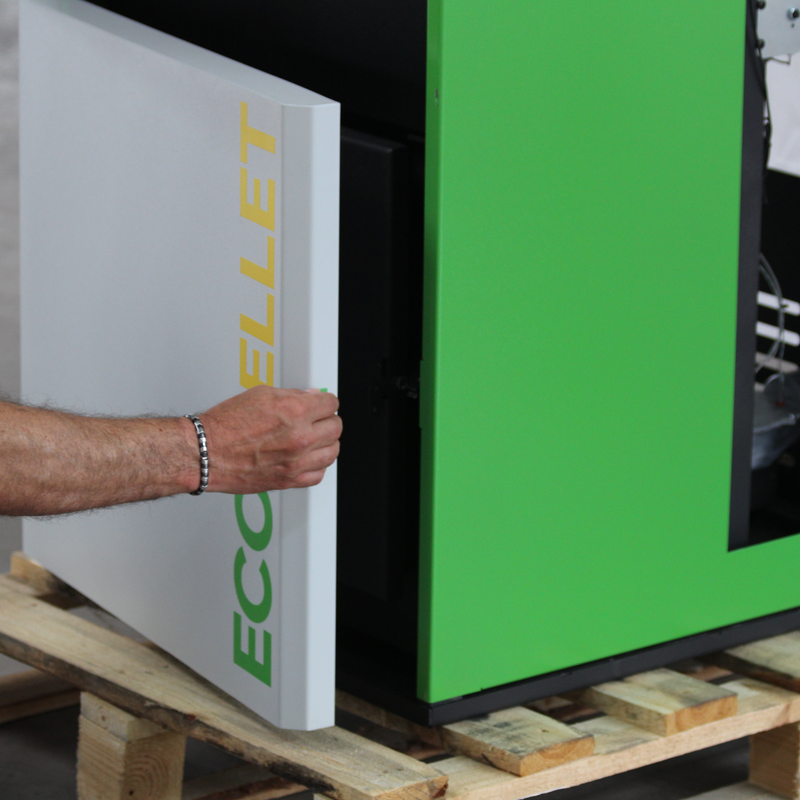

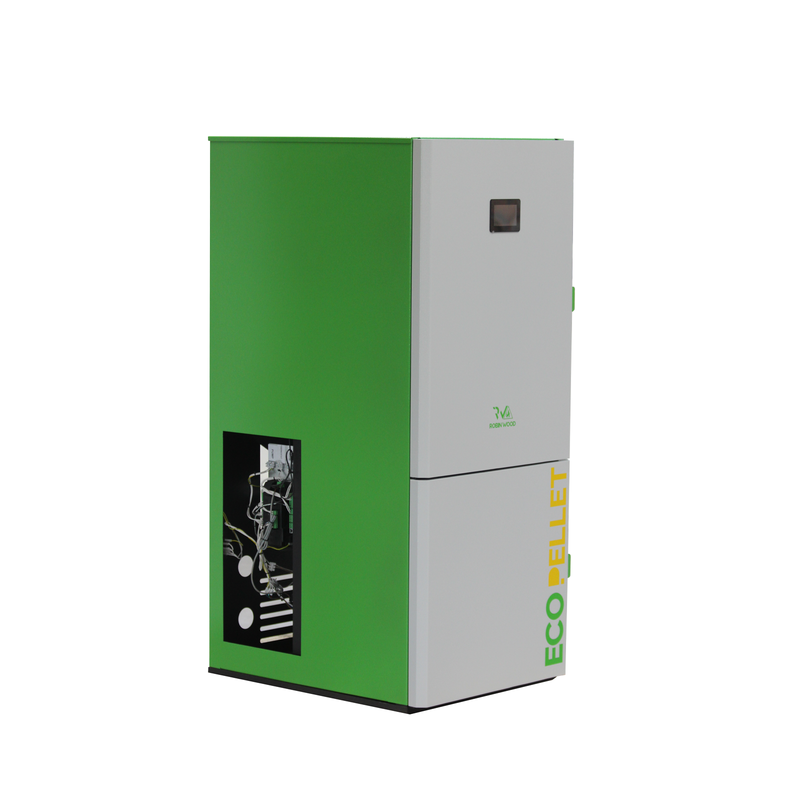

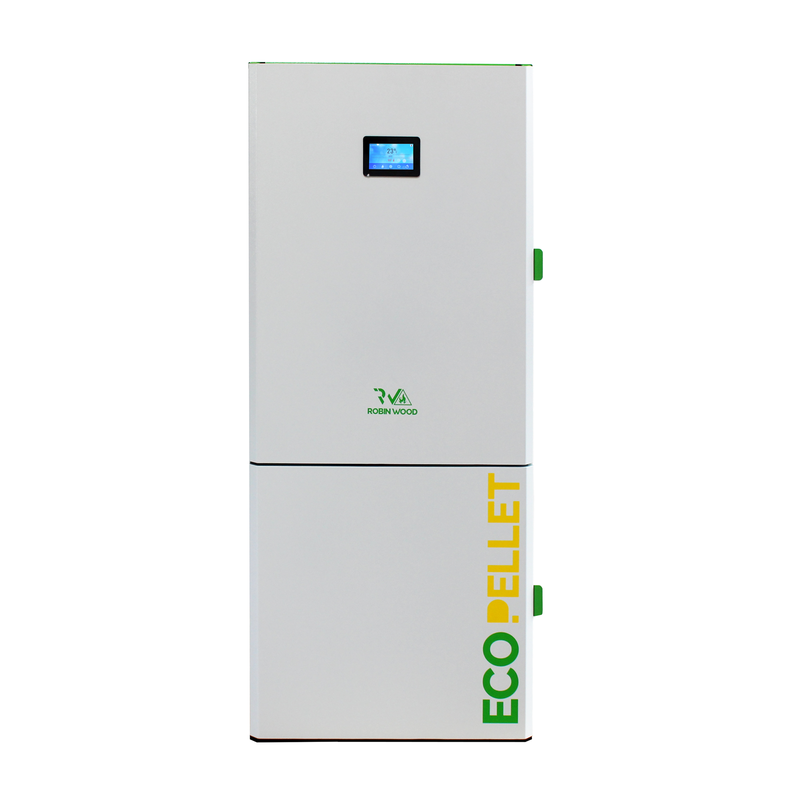

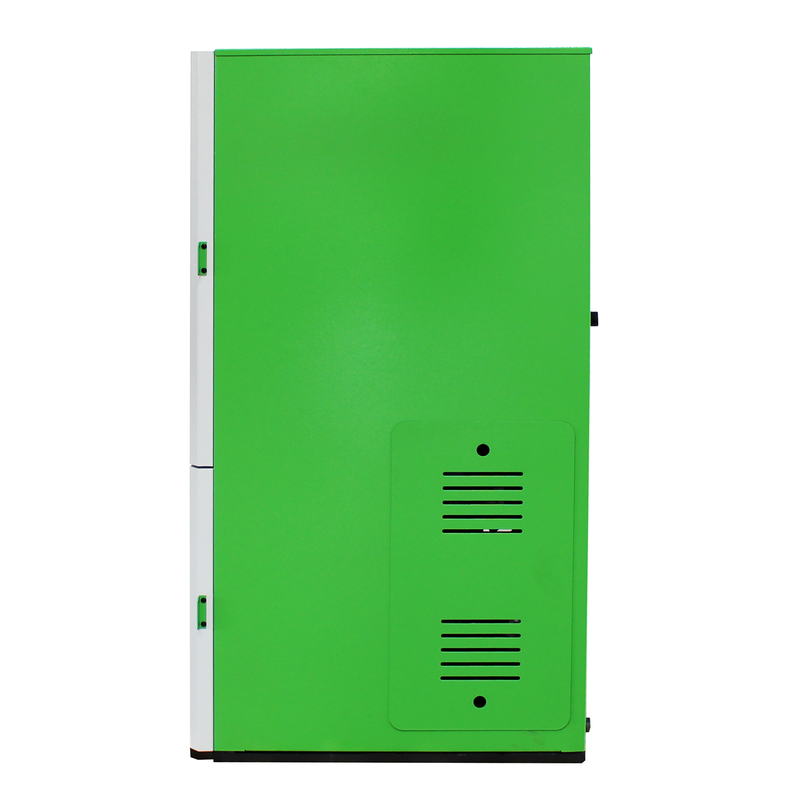

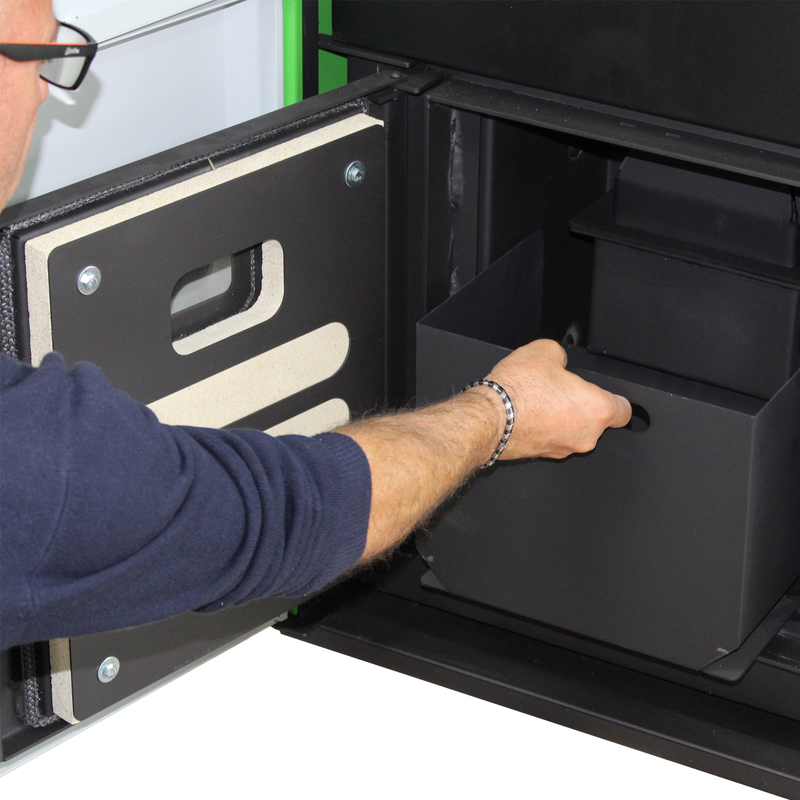

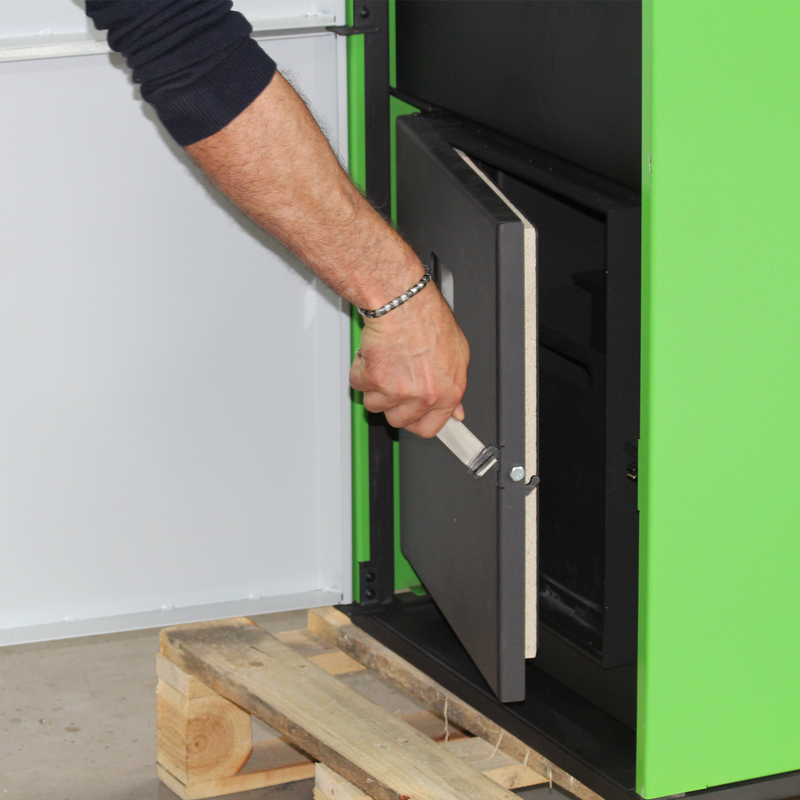

The Robin Wood EcoPellet is a pellet boiler of the latest generation with automatic burner cleaning.

Low consumption and high efficiency are the hallmarks of this boiler. With an efficiency of >96%, it achieves energy efficiency class A++. Its compact design allows it to be installed even in small rooms. The Robin Wood EcoPellet is designed to supply the entire house with heat. Equipped with a modern combustion control system, this boiler guarantees you sufficient heat comfort for every season.

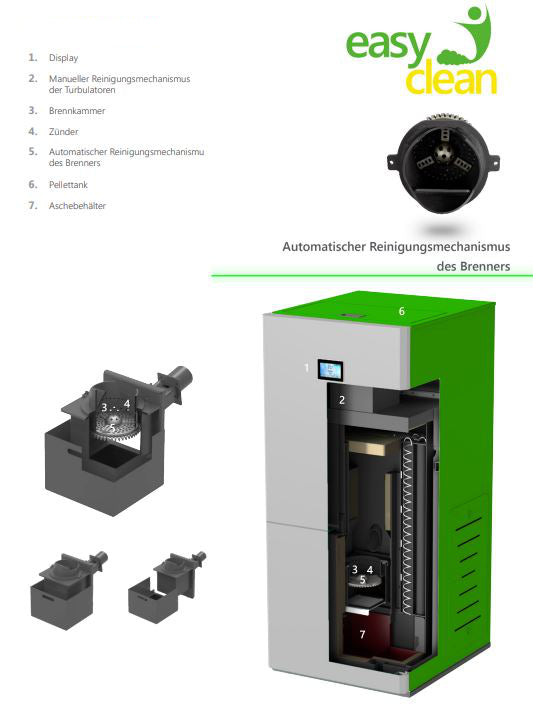

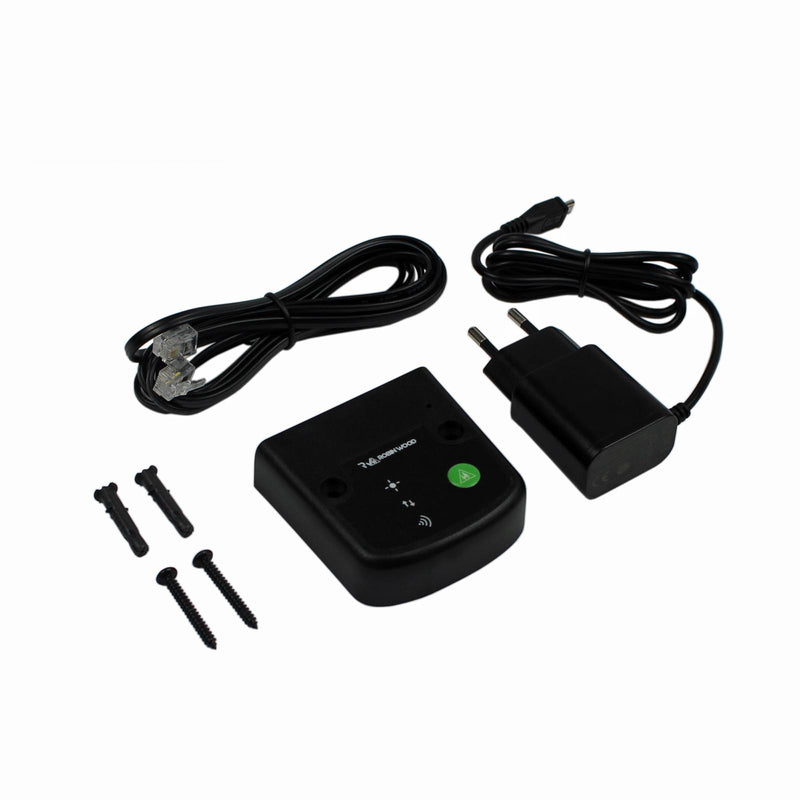

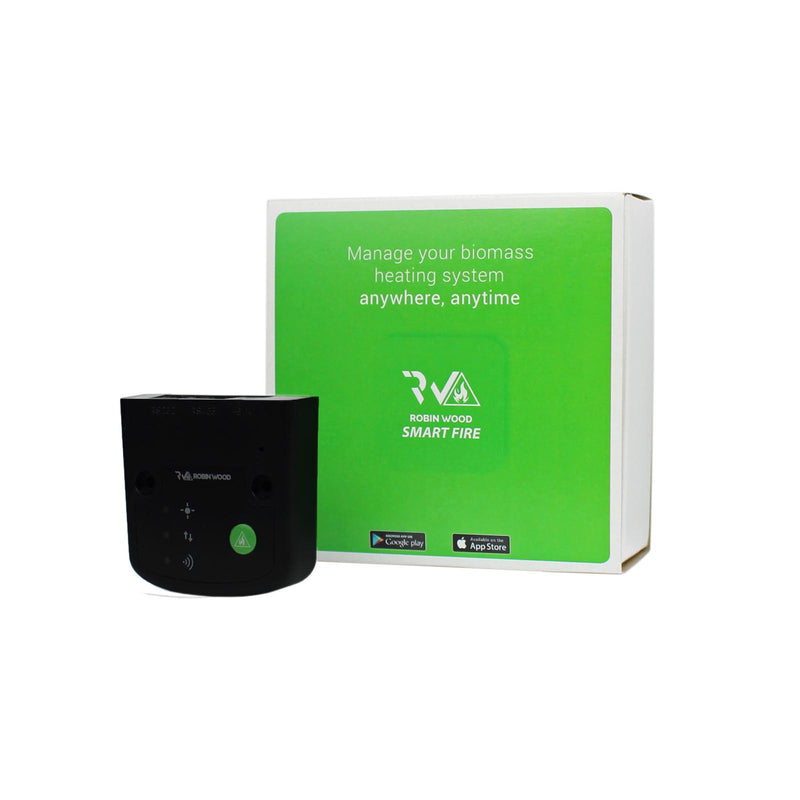

Equipped with a Robin Wood Smartfire WiFi module and a suitable app, you can access the boiler at any time via your smartphone and adapt it to your needs. The pellet boiler can also be combined with other heat generators. It also has an automatic burner cleaning function.

Would you like to heat your house with solar energy or a heat pump? With a multi-buffer system you can use every conceivable energy source. With a Robin Wood EcoPellet you remain flexible and can upgrade your heating system according to your wishes.

✓ BAFA eligible in Germany

▸ see bafa.de
▸ We are happy to help you fill out the BAFA application

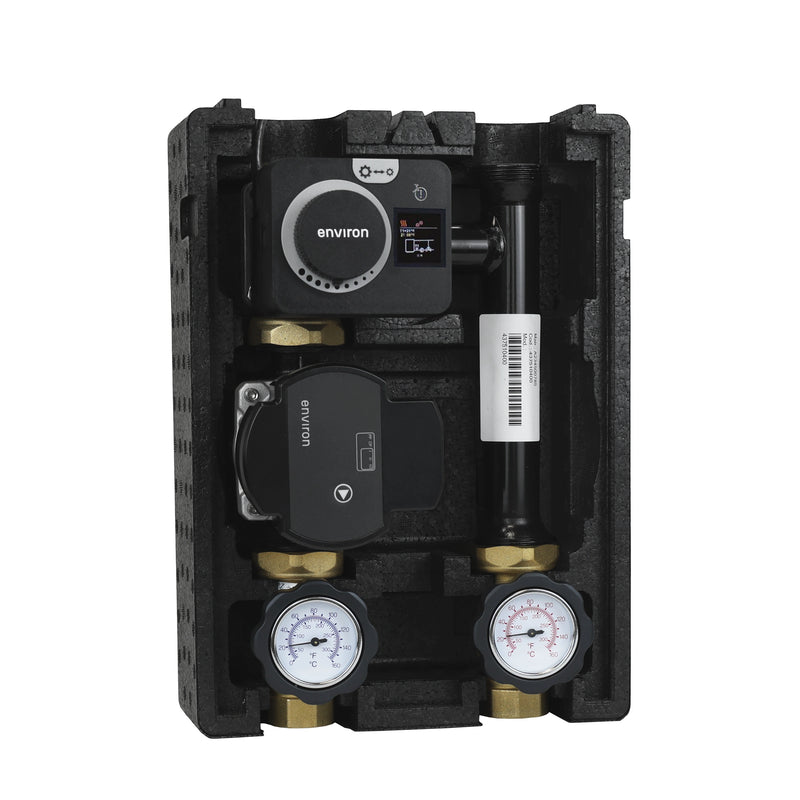

Thermoreflux X return flow increase with electric fixed value actuator ENC10 and Environ EcoStar 25/6

The Thermoreflux X return flow increaser is a ready-to-install, compact return flow increaser/loading valve unit for maintaining the boiler and return flow temperature for all common boiler sizes from 5 kW to 80 kW nominal output. Electronically controlled with built-in three-way mixer made of brass. An Elodrive ST06 servomotor is installed. A Wilo Para 25/6 high-efficiency pump is also installed. In the upper area of ​​the pump group there are flat-sealing shut-off valves (1" IG) with built-in thermometers (0-160°C).

The return flow increase (also return temperature increase or RLA) directs water from the warm flow of a heating system into the return flow. In this way, it reduces the temperature difference between the two media and thus ensures safe and efficient heating operation.

Technical data:

▸ Flow rate: 1,600 L/h
▸ Max. temperature: 110°C
▸ Max. pressure: 6 bar
▸ Min. temperature: 10°C
▸ Kvs: 8.3
▸ Ball valves: Brass CW617N
▸ Insulation material: EPP 38 g/l
▸ Thermal conductivity 0.038 W/mK
▸ Fire protection class: ISO 3795
▸ Sealing set: EPDM
▸ Consumer connections: 1" IG
▸ System connections: 1 1/2" AG

Technical data Environ EcoStar 25/6 high-efficiency pump:

▸ Max. delivery height: 6m
▸ Max flow rate: 3.6m³/h
▸ Temperature range: -20°C to +110°C
▸ Power consumption: 3W-43W
▸ Operating pressure: max. 10 bar
▸ Electrical connection: 230V/50HZ
▸ Supply voltage: 220~240V, 50/60Hz
▸ Protection level: IP44
▸ Insulation class: H
▸ EMC standard: EN61000-6-1 and EN61000-6-3

scope of delivery

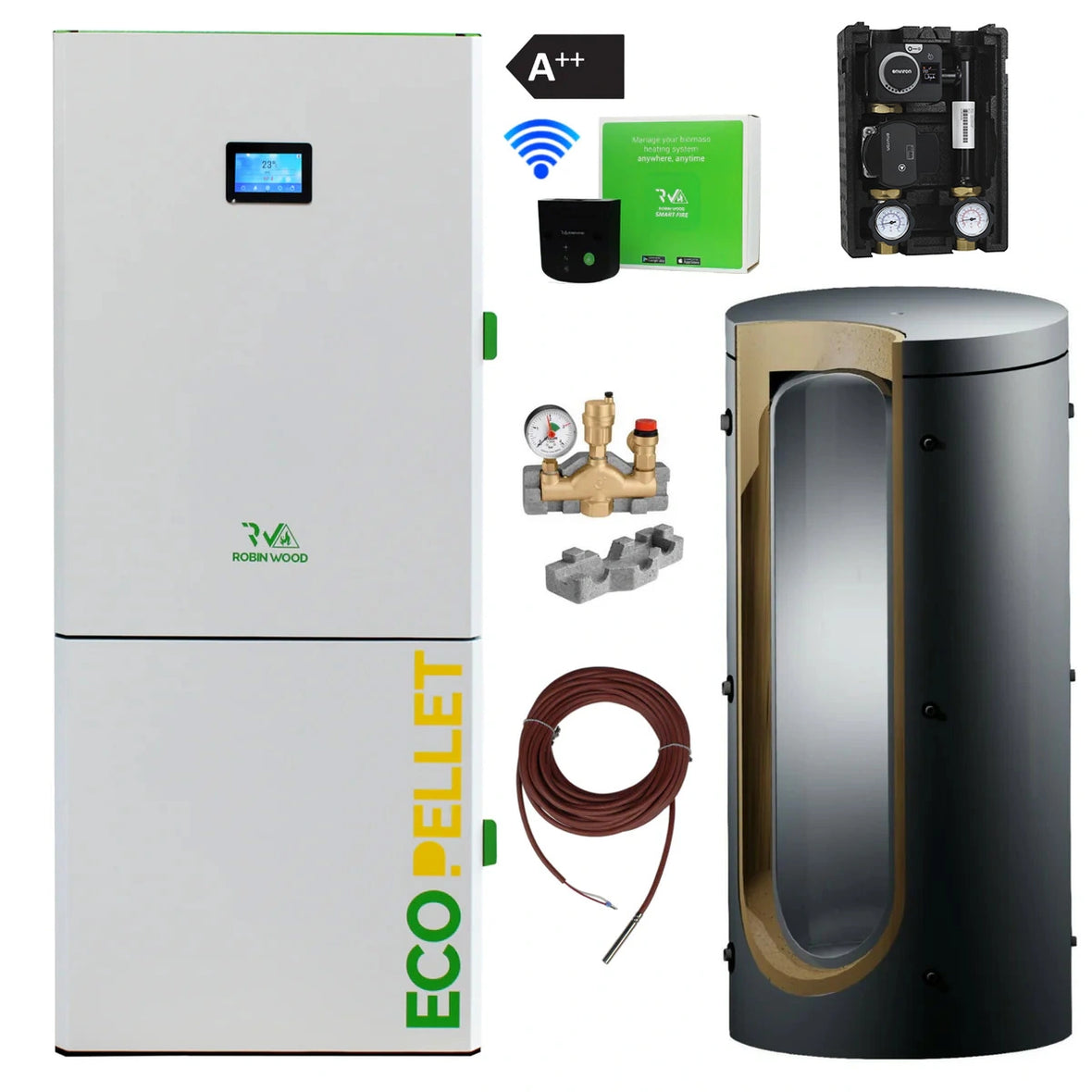

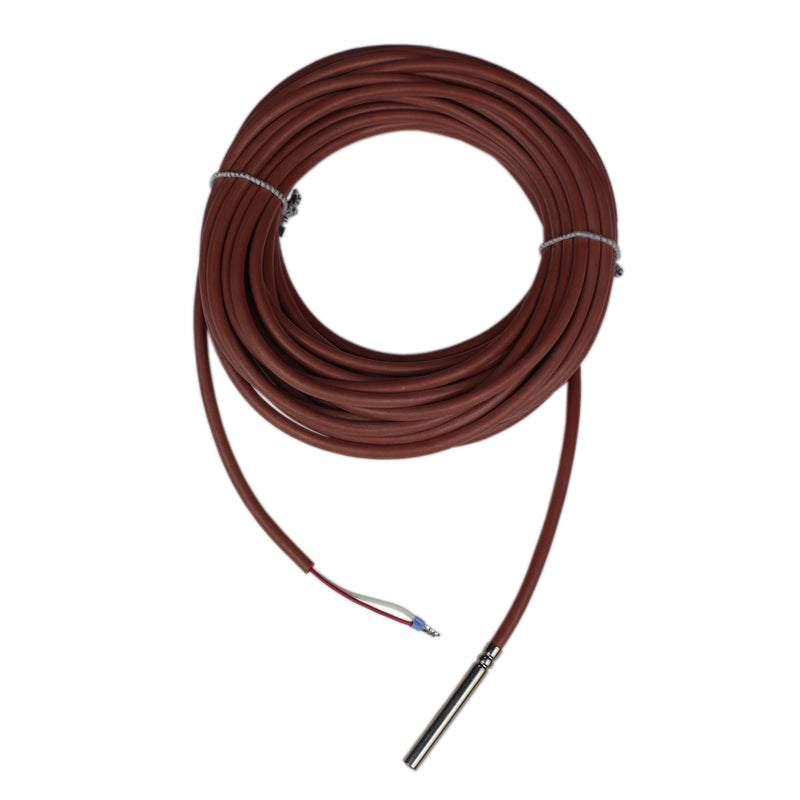

✓ A++ Robin Wood EcoPellet pellet boiler (output of your choice) with buffer storage, return flow increase, buffer sensor and WiFi module for the Robin Wood Smartfire app to monitor your pellet heating system

Technical data Robin Wood EcoPellet.

Robin Wood EcoPellet 12 kW:

▸ Maximum nominal heat output: 12 Kw
▸ Height H: 1490 mm
▸ Width B: 600 mm
▸ Depth T: 750 mm
▸ Pellet tank capacity: 105 kg
▸ Fresh air connection: Ø 48 mm
▸ Smoke pipe: Ø 80 mm
▸ Weight: 220 kg
▸ Fuel type: pellets Ø6-Ø8 mm
▸ Chimney draft: 12 Pa
▸ Power consumption: 60/310 W
▸ Power connection: 230/50 V/HZ
▸ Water jacket capacity: 30 liters
▸ Operating pressure: 0.5-2.0 bar
▸ Possible ambient temperature during operation: 5-40°C
▸ Humidity at 30°C ambient temperature: 85%
▸ Efficiency: >94%
▸ CO emissions: <320 Mg/m³
▸ Flue gas temperature: 110°C
▸ Max. water temperature: 90°C

exhaust gas mass flow at:

▸ Nominal power: 7.94 g/s
▸ Reduced power: 2.05 g/s
▸ Flue gas temperature: 110°C

✓ BAFA eligible in Germany ✓

Robin Wood EcoPellet 18 kW:

▸ Rated power: 18 Kw
▸ Height H: 1545 mm
▸ Width B: 566 mm
▸ Depth T: 787 mm
▸ Pellet tank capacity: 105 kg
▸ Fresh air connection: Ø 48 mm
▸ Smoke pipe: Ø 80 mm
▸ Weight: 220 kg
▸ Fuel type: Ø6-Ø8 mm wood pellet
▸ Chimney draft: 12 Pa
▸ Power consumption: 60/310 W
▸ Power connection: 230/50 V/Hz
▸ Water jacket capacity: 30 liters
▸ Operating pressure: 0.5-2.0 bar
▸ Possible ambient temperature in operation 5-40°C
▸ Humidity at 30°C
▸ Ambient temperature: 85%
▸ Efficiency >95%
▸ CO emissions: <300 Mg/m3
▸ Flue gas temperature: 125°C
▸ Max. water temperature: 90°C

exhaust gas mass flow at:

▸ Nominal power: 12.99 g/s
▸ Reduced performance: 3.75 g/s
▸ Flue gas temperature: 125°C

✓ BAFA eligible in Germany ✓

Robin Wood EcoPellet 24 kW:

▸ Maximum nominal heat output: 24 Kw
▸ Height H: 1545 mm
▸ Width B: 566 mm
▸ Depth T: 787 mm
▸ Pellet tank capacity: 105 kg
▸ Fresh air connection: Ø 48 mm
▸ Smoke pipe: Ø 80 mm
▸ Weight: 220 kg
▸ Fuel type: pellets Ø6-Ø8 mm
▸ Chimney draft: 12 Pa
▸ Power consumption: 60/310 W
▸ Power connection: 230/50 V/HZ
▸ Water jacket capacity: 48 liters
▸ Operating pressure: 0.5-2.0 bar
▸ Possible ambient temperature during operation: 5-40°C
▸ Humidity at 30°C ambient temperature: 85%
▸ Efficiency: >95%
▸ CO emissions: <300 Mg/m³
▸ Flue gas temperature: 125°C
▸ Max. water temperature: 90°C

exhaust gas mass flow at:

▸ Nominal power: 14.36 g/s
▸ Reduced power: 5.01 g/s
▸ Flue gas temperature: 125°C

✓ BAFA eligible in Germany ✓

Robin Wood EcoPellet 30 kW:

▸ Rated power: 30 Kw
▸ Height H: 1650 mm
▸ Width B: 626 mm
▸ Depth T: 788 mm
▸ Pellet tank capacity: 105 kg
▸ Fresh air connection: Ø 60 mm
▸ Smoke pipe: Ø 80 mm
▸ Weight: 245 kg
▸ Fuel type: Ø6-Ø8 mm wood pellet
▸ Chimney draft: 12 Pa
▸ Power consumption: 60/310 W
▸ Power connection: 230/50 V/Hz
▸ Water jacket capacity: 65 liters
▸ Operating pressure: 0.5-2.0 bar
▸ Possible ambient temperature in operation 5-40°C
▸ Humidity at 30°C
▸ Ambient temperature: 85%
▸ Efficiency >93%
▸ CO emissions: <300 Mg/m3
▸ Flue gas temperature: 147°C
▸ Max. water temperature: 90°C

exhaust gas mass flow at:

▸ Nominal power: 17.80 g/s
▸ Reduced performance: 6.01 g/s
▸ Flue gas temperature: 147°C


✓ BAFA eligible in Germany ✓

Robin Wood EcoPellet 35 kW:

▸ Nominal power: 35 Kw
▸ Height H: 1650 mm
▸ Width B: 626 mm
▸ Depth T: 788 mm
▸ Pellet tank capacity: 105 kg
▸ Fresh air connection: Ø 60 mm
▸ Smoke pipe: Ø 80 mm
▸ Weight: 245 kg
▸ Fuel type: Ø6-Ø8 mm wood pellet
▸ Chimney draft: 12 Pa
▸ Power consumption: 60/310 W
▸ Power connection: 230/50 V/Hz
▸ Water jacket capacity: 65 liters
▸ Operating pressure: 0.5-2.0 bar
▸ Possible ambient temperature in operation 5-40°C
▸ Humidity at 30°C
▸ Ambient temperature: 85%
▸ Efficiency >93%
▸ CO emissions: <300 Mg/m3
▸ Flue gas temperature: 147°C
▸ Max. water temperature: 90°C

exhaust gas mass flow at:

▸ Nominal power: 20.28 g/s
▸ Reduced performance: 6.40 g/s
▸ Flue gas temperature: 147°C


✓ BAFA eligible in Germany ✓

Buffer storage dimensions:

Technical data 500 liters:

Height of the storage tank: 1782 mm
Diameter with insulation: 757 mm
Diameter without insulation: 650 mm
Max. permissible temperature: 95°C
water drainage: 75mm
Weight: 100 kg

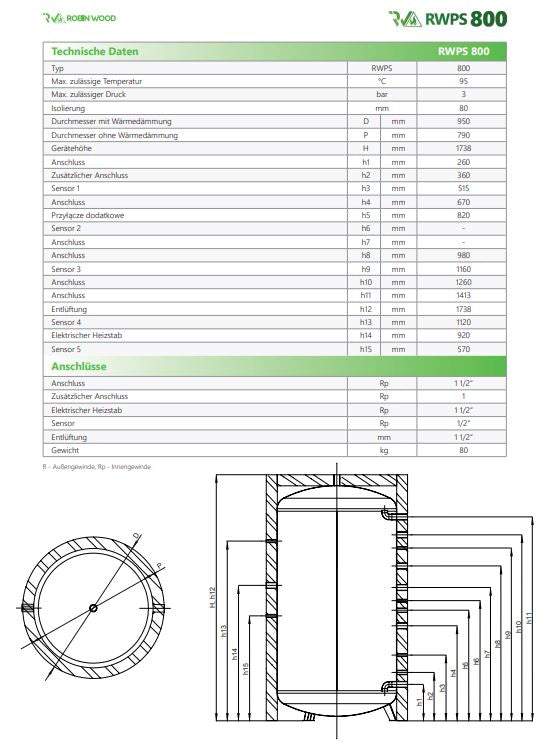

Technical data 800 liters:

Height of the storage tank: 1738 mm
Diameter with insulation: 950 mm
Diameter without insulation: 790 mm
Max. permissible temperature: 95°C
water drainage: 75mm
Weight: 100 kg

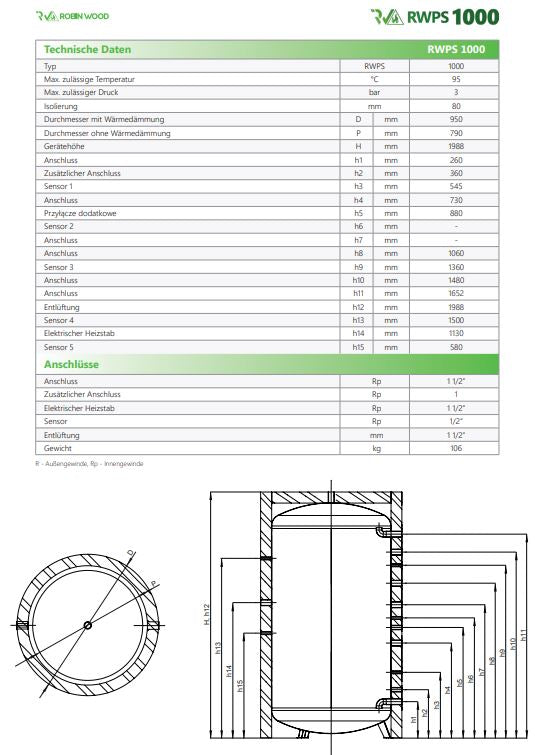

Technical data 1000 liters:

Height of the storage tank: 1988 mm
Diameter with insulation: 950 mm
Diameter without insulation: 790 mm
Max. permissible temperature: 95°C
water drainage: 75mm
Weight: 100 kg

Connections:

Water drain: 1 1/2” internal thread
Connection: 1 1/2” internal thread
Sensor: 1/2" internal thread
Venting: 1 1/2" internal thread
