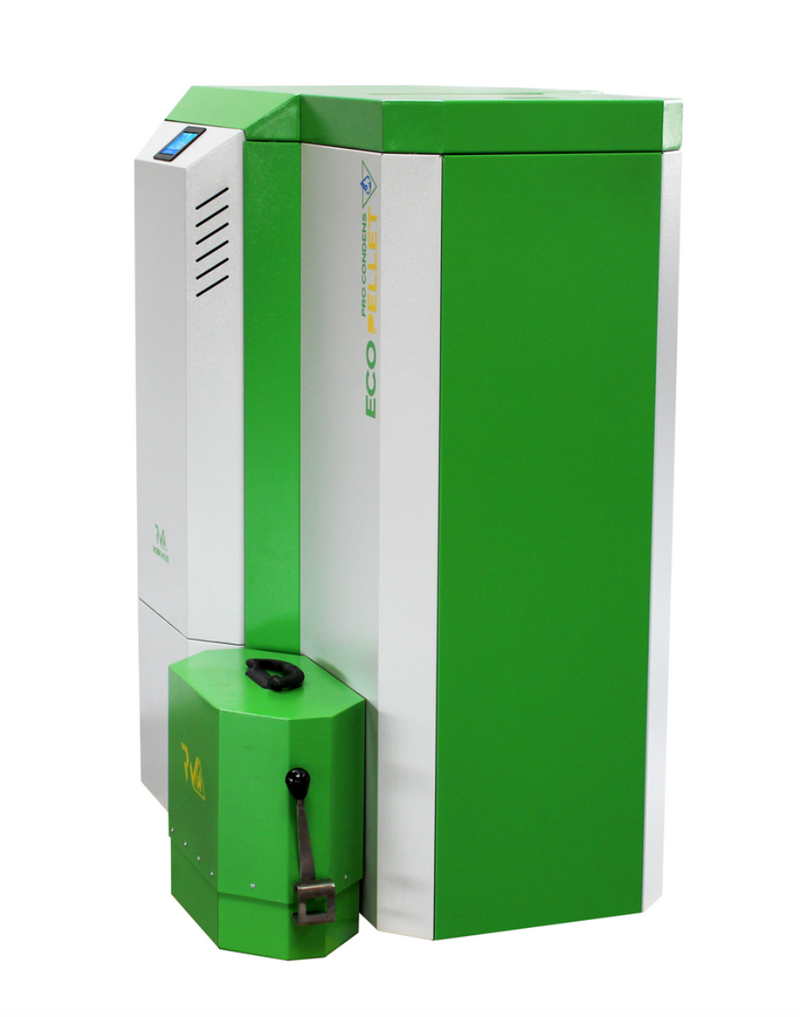

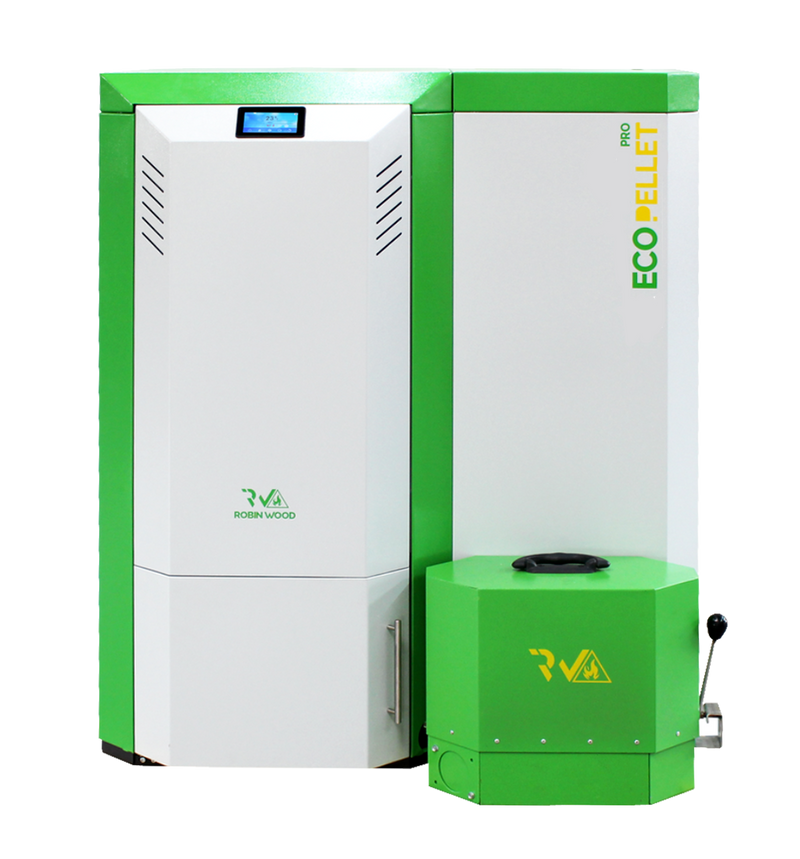

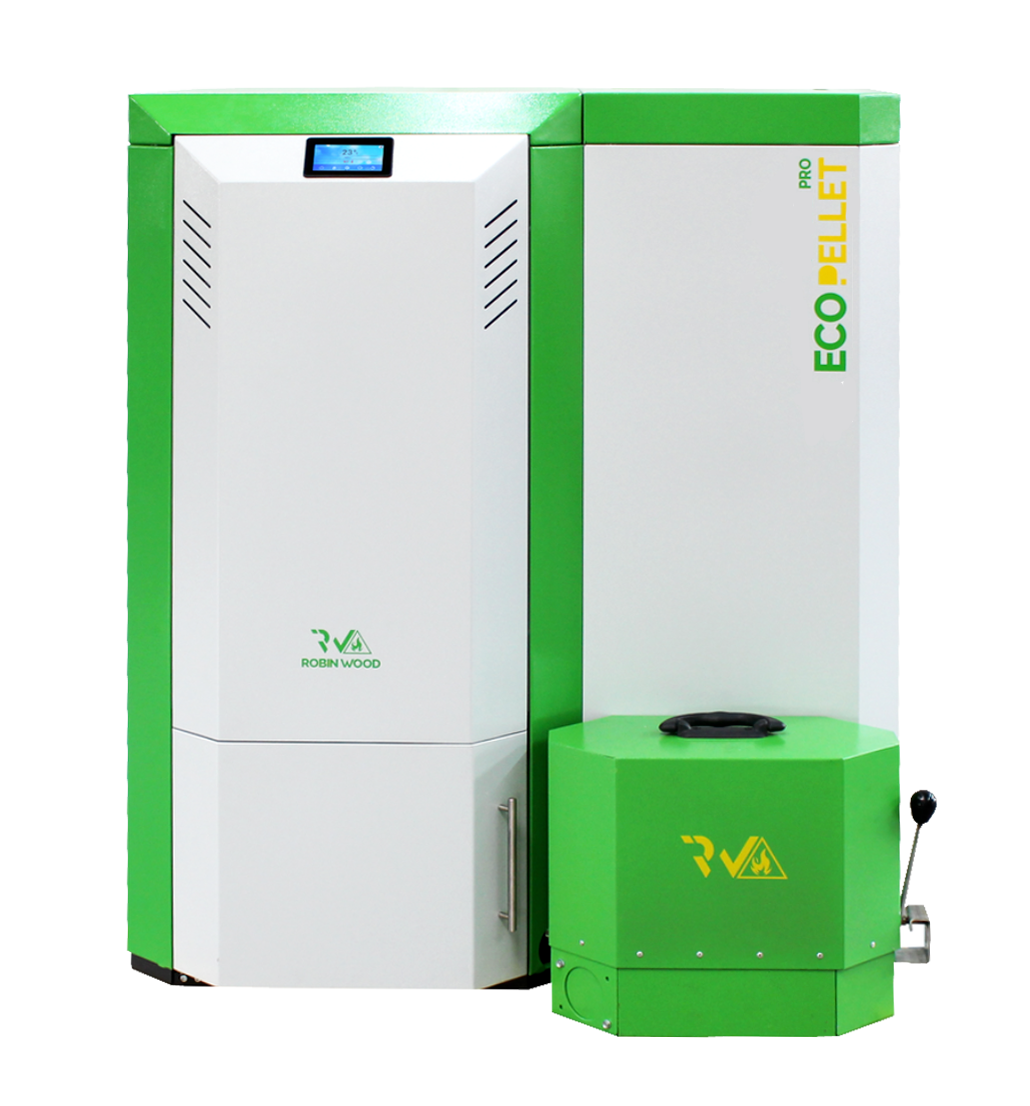

A++ Robin Wood EcoPellet Pro 18 kW condensing boiler

The Robin Wood EcoPellet Pro is a pellet boiler with condensing technology.

This pellet boiler sets the bar very high when it comes to energy efficiency. The condensing technology enables the boiler to achieve an efficiency of 94%, which is much higher than even the most modern, top-of-the-range pellet boilers without this technology.

Its compact design allows it to be installed even in small rooms. The Robin Wood EcoPellet Pro is designed to supply the entire house with heat. Equipped with a modern combustion control system, this boiler guarantees you sufficient heat comfort for every season. Equipped with a WiFi module and an app, you can access the boiler at any time via your smartphone and adapt it to your needs. The pellet boiler can also be combined with other heat generators.

Would you also like to heat your house with solar energy or a heat pump? With a multi-buffer system, you can use all imaginable energy sources. With a Robin Wood EcoPellet Pro, you remain flexible and can upgrade your heating system according to your ideas.

characteristics

• Works with all conventional heat distribution systems, such as radiators, underfloor heating, wall heating, etc.
• Energy-efficient combustion technology with efficiencies of up to 94%.
• Compact design
• with integrated ash removal.
• With automatic burner cleaning and automatic cleaning of the heat exchangers.
• Prepared for all ENVIRON brand pellet suction systems.
• With integrated buffer charging management.
• With WiFi module and app

✓ BAFA eligible in Germany

• see bafa.de
• We will be happy to help you fill out the BAFA application

Technical Details

▸ Maximum power: 18 kW
▸ Minimum power: 6 kW
▸ Pellet tank capacity: 60 kg
▸ Smoke pipe: Ø 80 mm
▸ Weight: 441 kg
▸ Fuel type: pellets Ø6-Ø8 mm
▸ Chimney draft: 12 Pa
▸ Power consumption: 60/500 W
▸ Power connection: 230/50 V/HZ
▸ Water jacket capacity: 50 liters
▸ Operating pressure: 0.5-2.0 bar
▸ Possible ambient temperature during operation: 5-40°C
▸ Humidity at 30°C ambient temperature: 85%
▸Energy conversion efficiency: 94%
▸Efficiency of energy conversion + condensation unit: 99%
▸Efficiency of energy conversion + condensation unit at 30-50°C: 106%
▸ CO emissions: <300 Mg/m³
▸ Flue gas temperature: 60°C
▸ Max. water temperature: 90°C

✓ BAFA eligible in Germany ✓

Manufacturer information:

ROBIN WOOD GmbH

Überaucher Straße 9

D-78052 Villingen-Schwenningen

Tel.: +49 7705 9769692

Email: info@robinwood-gmbh.de

Website: www.robinwood-gmbh.de
