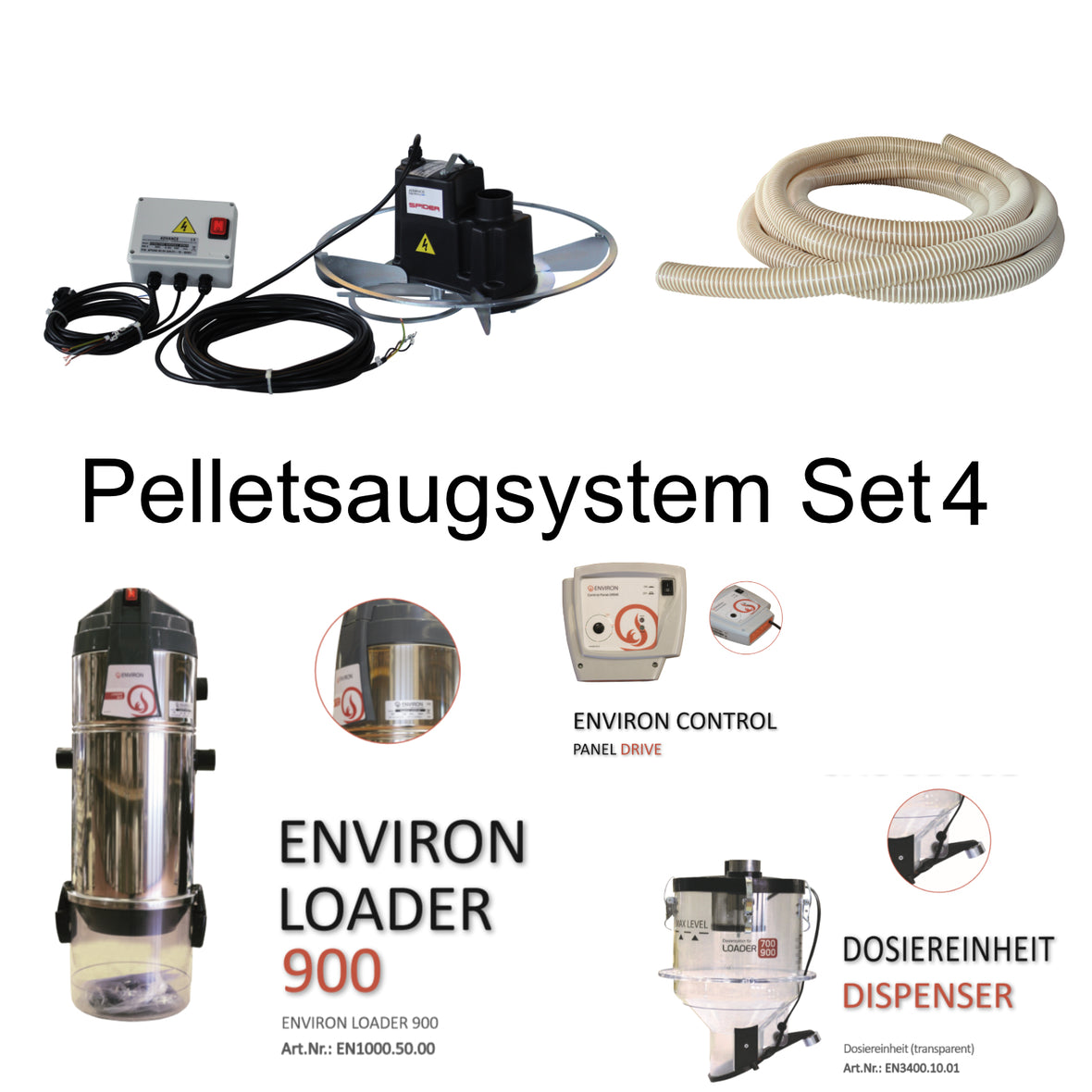

Environ pellet suction system configuration 4- pellet removal vertically with the Environ Spiderhug:

✓ Ready-to-connect pellet suction system ✓

Scope of delivery:

• Vertical extraction unit Spiderhug
• Suction turbine with integrated filter system and dust container Loader900
• Environ Control Panel Drive
• Dosing unit dispenser with integrated sensor
• 20 m Environ PU pellet hose Ø 50 mm

EN3400.00.04 Environ Spiderhug:

The Spiderhug motorised vertical extraction unit is designed and built to extract fuel from the flat Environ storage containers: the fuel is sucked out from above.

The Spiderhug is placed on the surface of the stored pellets and during operation gradually draws the fuel down to the bottom of the store. The Spiderhug is equipped with a control board that protects the system against overvoltage and short circuits.

The Spiderhug is also suitable for use with self-built tanks of any kind. The Spiderhug works automatically via the electrical connection to the Environ Control Panel DRIVE.

Technical data Environ Spiderhug:

▸Power connection: 230V
▸Frequency: 50 Hz
▸Protection level: IP40
▸Rated power: 15W
▸Absorption: 0.14A
▸Revolutions per minute: 12 rpm
▸Nominal torque: 5Nm

EN1000.50.00 Environ Loader900

✓ The use of high-quality materials such as stainless steel guarantees a long service life.

✓ The dust container is made of high-strength transparent plastic.

✓The Environ LOADER 900 generates strong suction power with its single-phase electric motor with tangential bypass brushes.

✓The control board is integrated into the body of the suction unit.

✓The class E11 polyester filter offers a large filter surface and can be washed out with water.

✓The suction line of the Environ LOADER 900 can be combined with all Environ extraction units and can be connected to the left and right of the cyclone.

Characteristics:

▸The Environ LOADER900 is universal
▸It can be installed on all existing or newly installed boilers.
▸The dimensions are reduced to a minimum.
▸You save the connection between the dosing unit and the central vacuum unit,
because it is integrated into a single body.

Technical data suction turbine LOADER900:

▸Dust inlet: Ø mm 50
▸Air outlet: Ø mm 50
▸Protection level: IP44
▸Power supply: 230 V
▸Frequency: 50/60 Hz
▸Engine power: 1.35 kW

Manufacturer information:

ENVIRON Energie- und Umwelttechnik GmbH & Co. KG

Robert-Bosch-Straße 9

78048 Villingen-Schwenningen

Phone: +49 7705 977 5803

E- Mail: info@environgroup.de
Website: https://environ-solutions.de/
