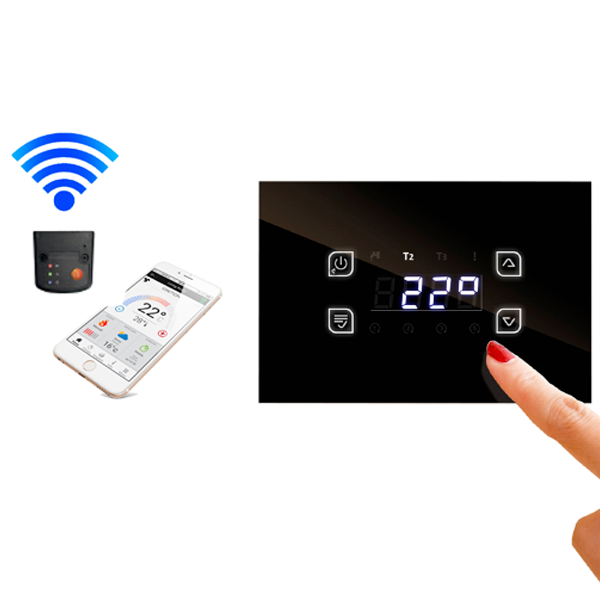

The GLH 110 Glass Touch solid temperature difference controller offers everything your water-bearing fireplace or wood gasification boiler needs for safe and long-term system operation.

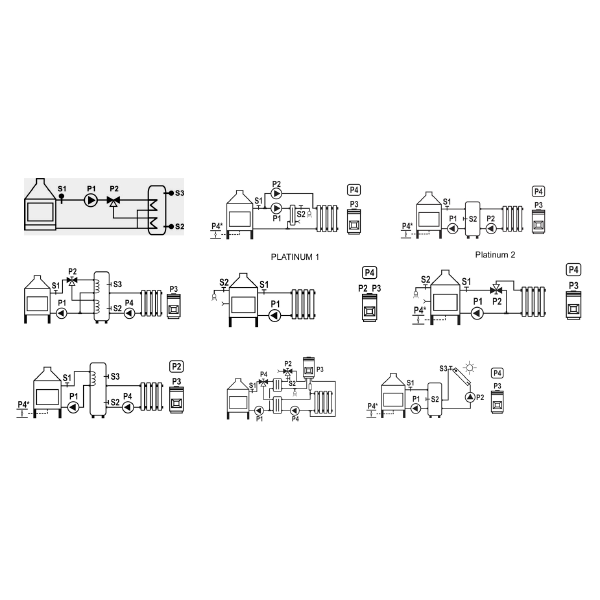

The control system monitors and controls water-bearing fireplaces or wood boilers with one or two storage tanks. In addition to loading the storage tank (P1), the controller also performs important system monitoring and safety functions. System parameters and measured values ​​can be viewed and changed via the display.

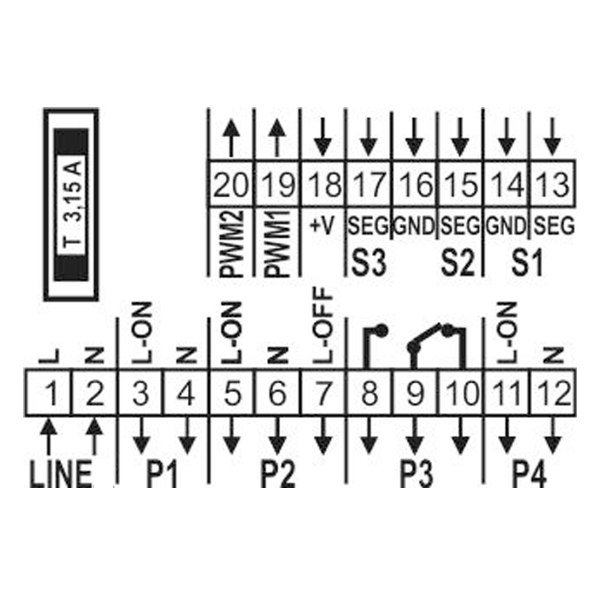

The controller has three inputs for temperature measurement and four outputs for controlling the boiler pump, for switching a three-way valve, for boiler demand and an "extra service" output for other applications. The equipment of the Environ GLH 110 solid fuel is supplemented by numerous additional functions, such as the maximum storage temperature, anti-blocking of the pumps, alarm function (acoustic and visual) and frost protection function. An acoustic signal reports any temperature exceedances.

The operational reliability of the system is supported by a well-thought-out error diagnosis. The display ensures that any errors that have occurred are quickly and reliably located and helps to quickly eliminate faults.

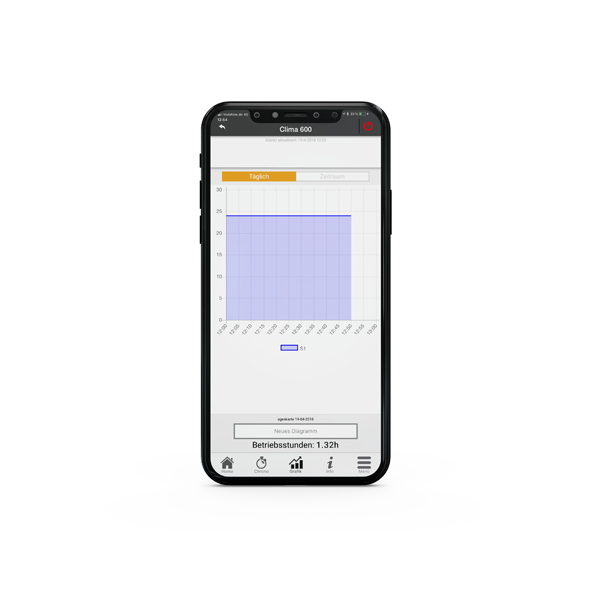

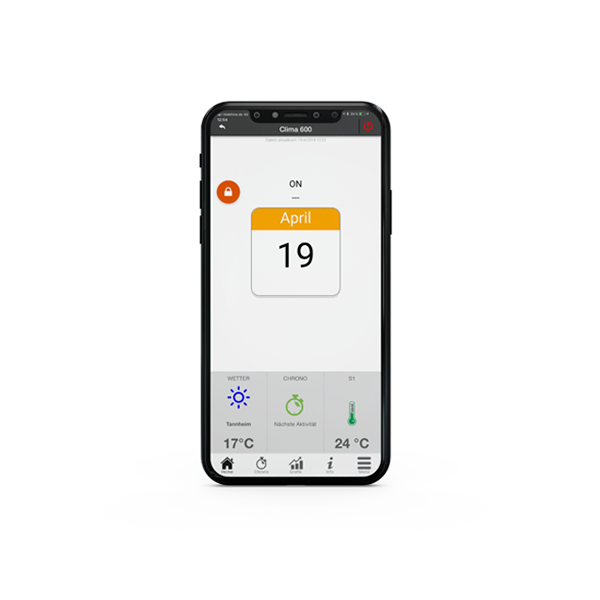

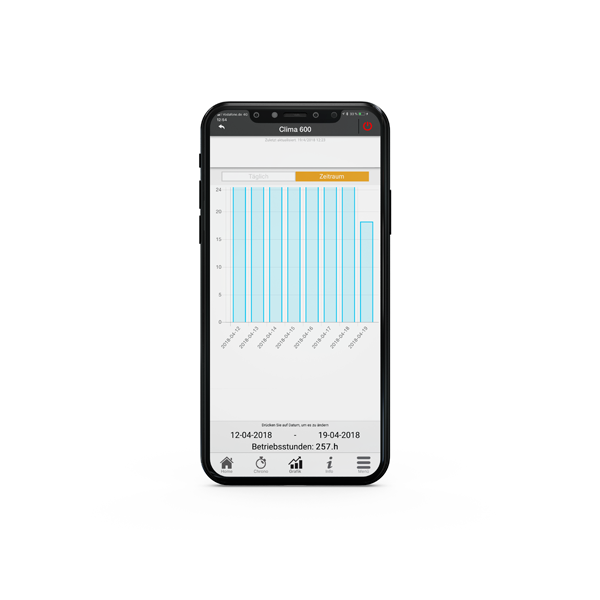

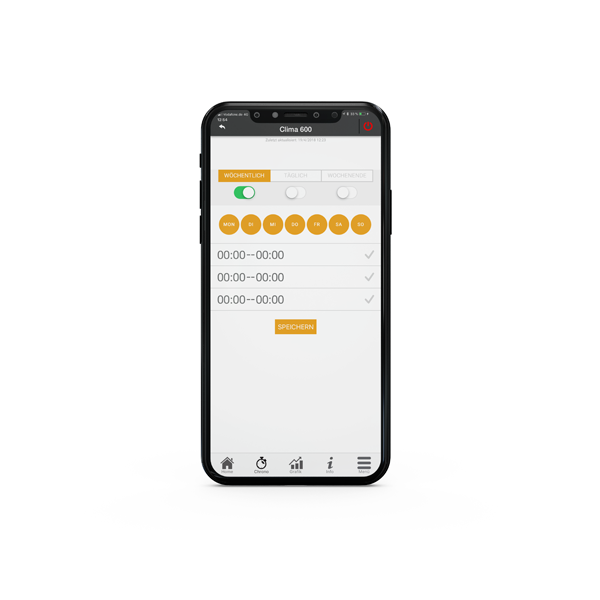

Together with the Environ Connected WiFi module, you can control, monitor and change settings of your Environ control system using the Environ Connected app. The Environ Connected app is available for iOS and Android.

scope of delivery
▸ Environ GLH 110 control
▸ Flush-mounted box with screws and bracket
▸ 3x temperature sensors

Operating instructions: https://environworld.environgroup.de/wp-content/uploads/2021/04/GLH-110.pdf

Manufacturer information:

ENVIRON Energie- und Umwelttechnik GmbH & Co. KG

Robert-Bosch-Straße 9

78048 Villingen-Schwenningen

Phone: +49 7705 977 5803

E- Mail: info@environgroup.de
