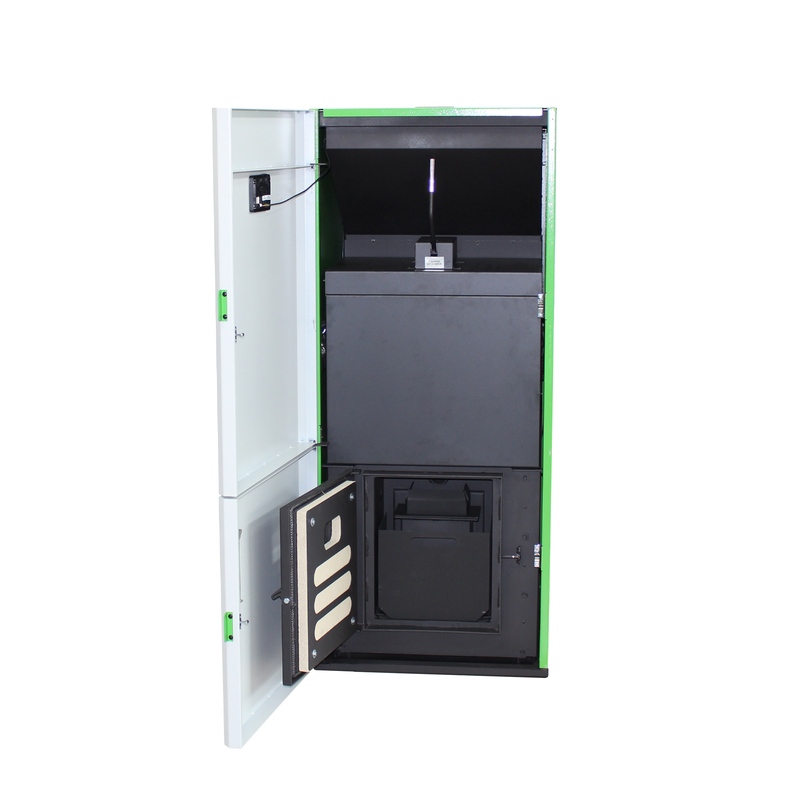

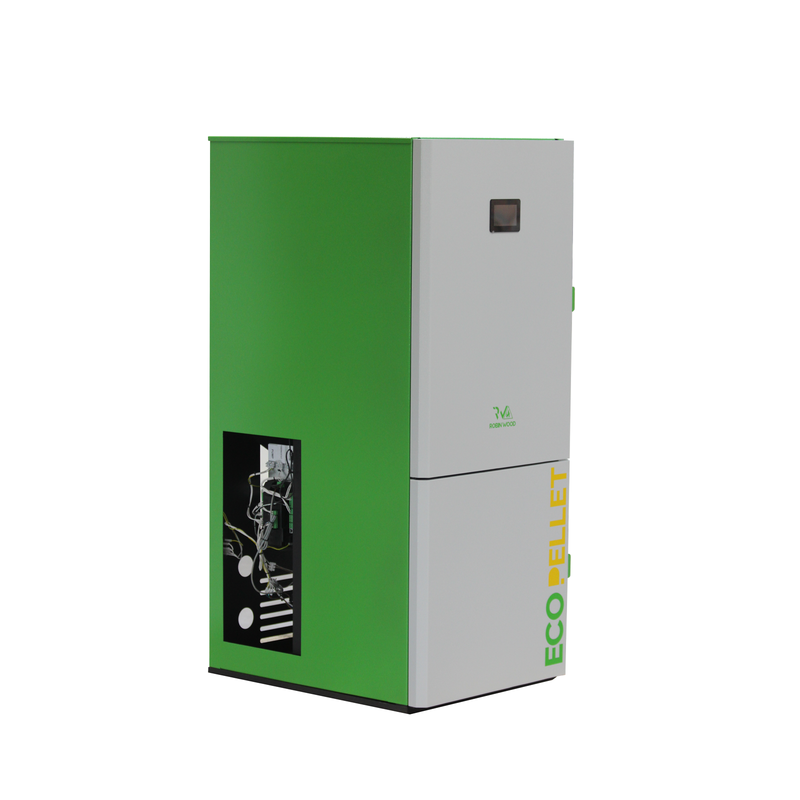

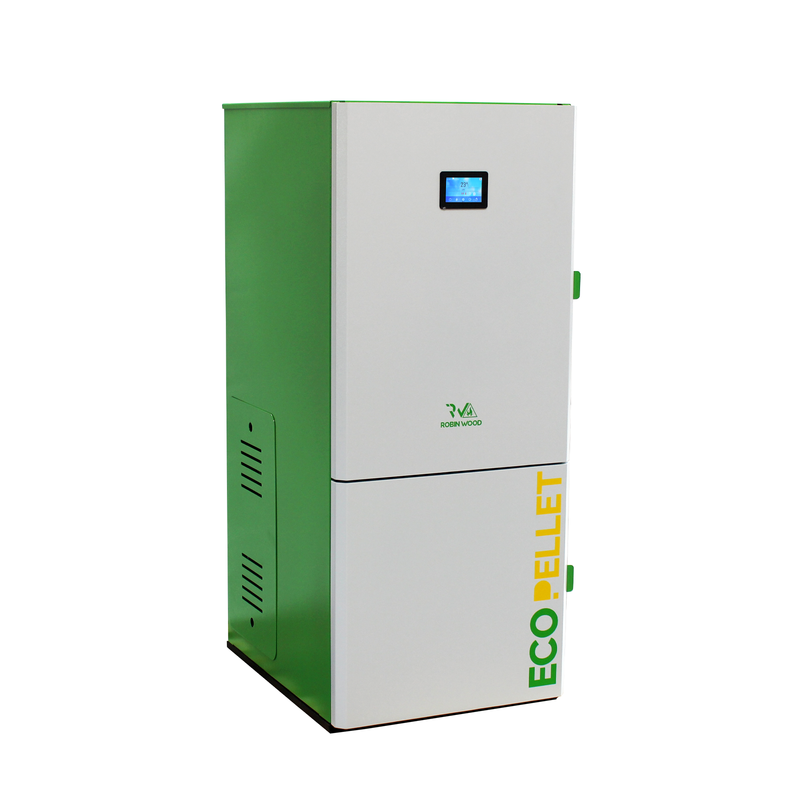

The Robin Wood EcoPellet is a pellet boiler of the latest generation with automatic burner cleaning and the EasyClean function.

Low consumption and high efficiency are the hallmarks of this boiler. With an efficiency of >95%, it achieves energy efficiency class A++. Its compact design allows it to be installed even in small rooms. The Robin Wood EcoPellet is designed to supply the entire house with heat. Equipped with a modern combustion control system, this boiler guarantees you sufficient heat comfort for every season.

Equipped with a WiFi module connected to a suitable app, you can access the boiler at any time via your smartphone and adapt it to your needs. The pellet boiler can also be combined with other heat generators. It also has an automatic burner cleaning function.

Would you like to heat your house with solar energy or a heat pump? With a multi-buffer system you can use every conceivable energy source. With a Robin Wood EcoPellet you remain flexible and can upgrade your heating system according to your wishes.

✓ BAFA eligible in Germany

▸ see bafa.de
▸ We are happy to help you fill out the BAFA application



Technical Details
▸ Maximum nominal heat output: 24 Kw
▸ Height H: 1545 mm
▸ Width B: 566 mm
▸ Depth T: 787 mm
▸ Pellet tank capacity: 105 kg
▸ Fresh air connection: Ø 48 mm
▸ Smoke pipe: Ø 80 mm
▸ Weight: 220 kg
▸ Fuel type: pellets Ø6-Ø8 mm
▸ Chimney draft: 12 Pa
▸ Power consumption: 60/310 W
▸ Power connection: 230/50 V/HZ
▸ Water jacket capacity: 48 liters
▸ Operating pressure: 0.5-2.0 bar
▸ Possible ambient temperature during operation: 5-40°C
▸ Humidity at 30°C ambient temperature: 85%
▸ Efficiency: >95%
▸ CO emissions: <300 Mg/m³
▸ Flue gas temperature: 125°C
▸ Max. water temperature: 90°C

exhaust gas mass flow at:

▸ Nominal power: 14.36 g/s
▸ Reduced power: 5.01 g/s
▸ Flue gas temperature: 125°C

✓ BAFA eligible in Germany ✓

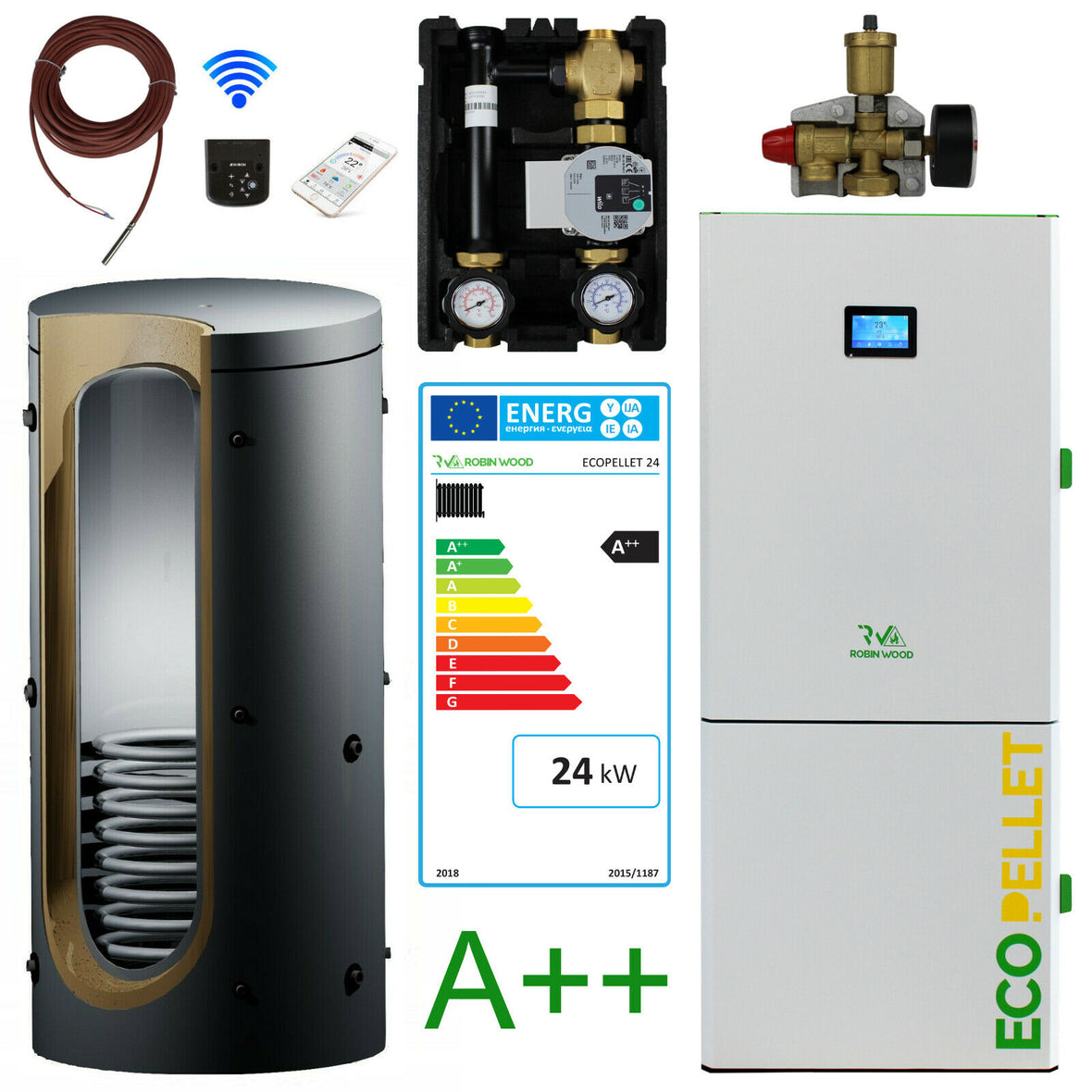

scope of delivery

• A++ Robin Wood EcoPellet 24 kW pellet boiler

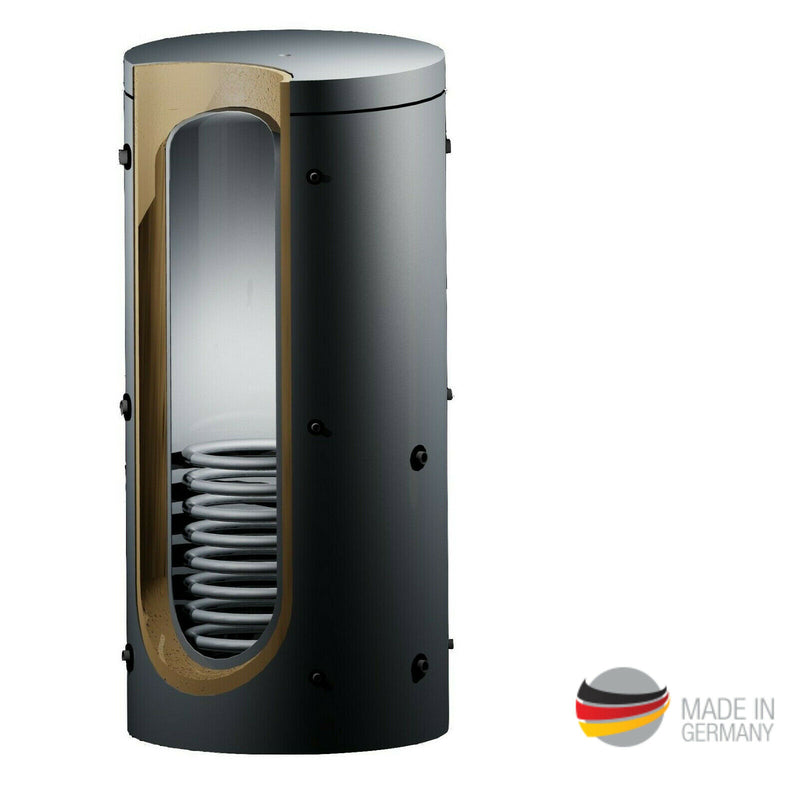

• Buffer tank 800 liters with insulation and a heat exchanger (Made in Germany)

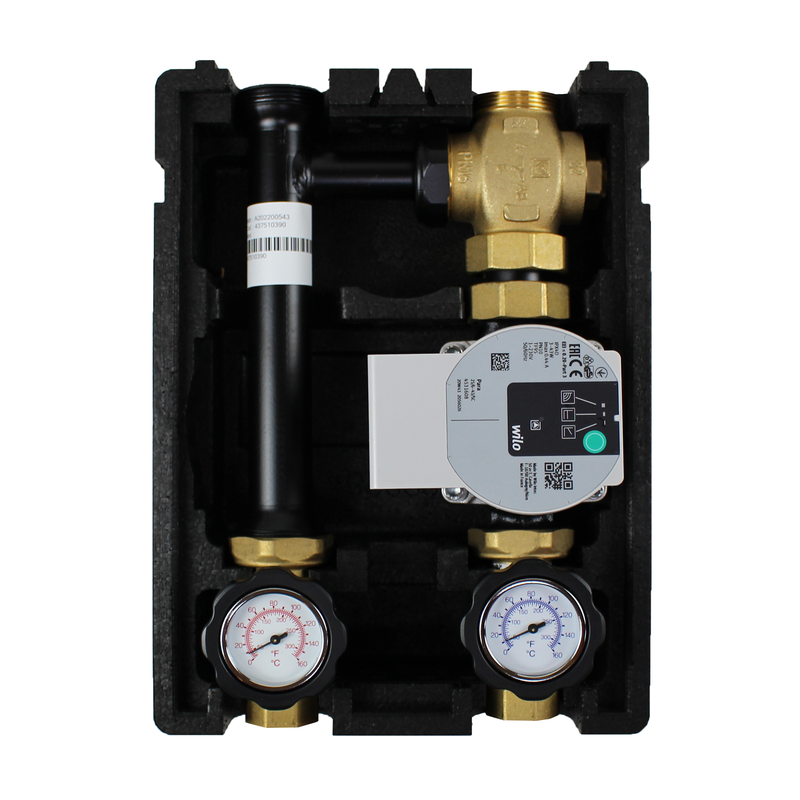

• Return flow increase with Wilo Para 25/6 high-efficiency pump

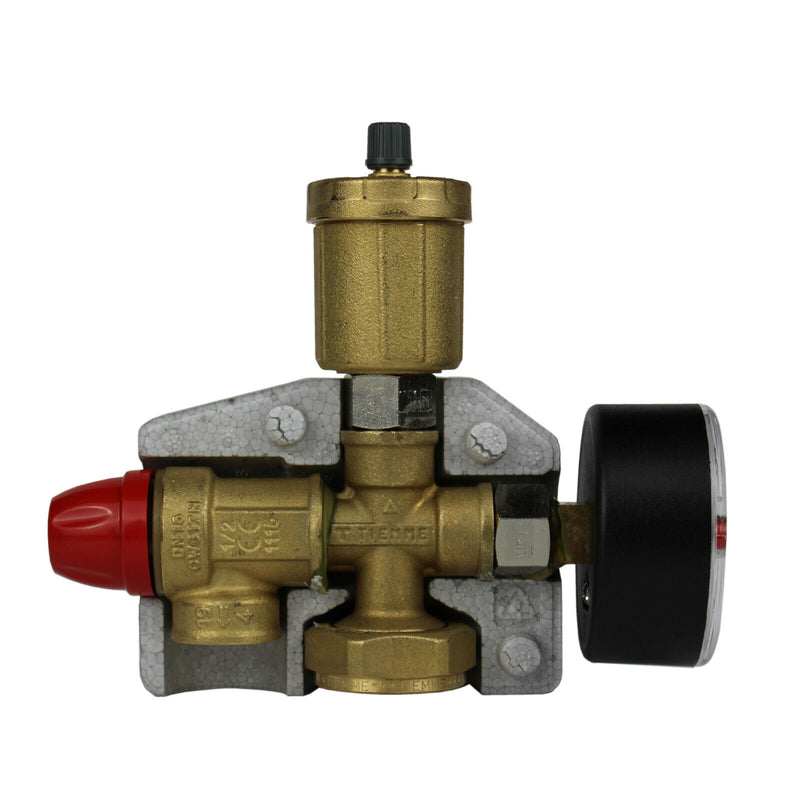

• boiler safety group

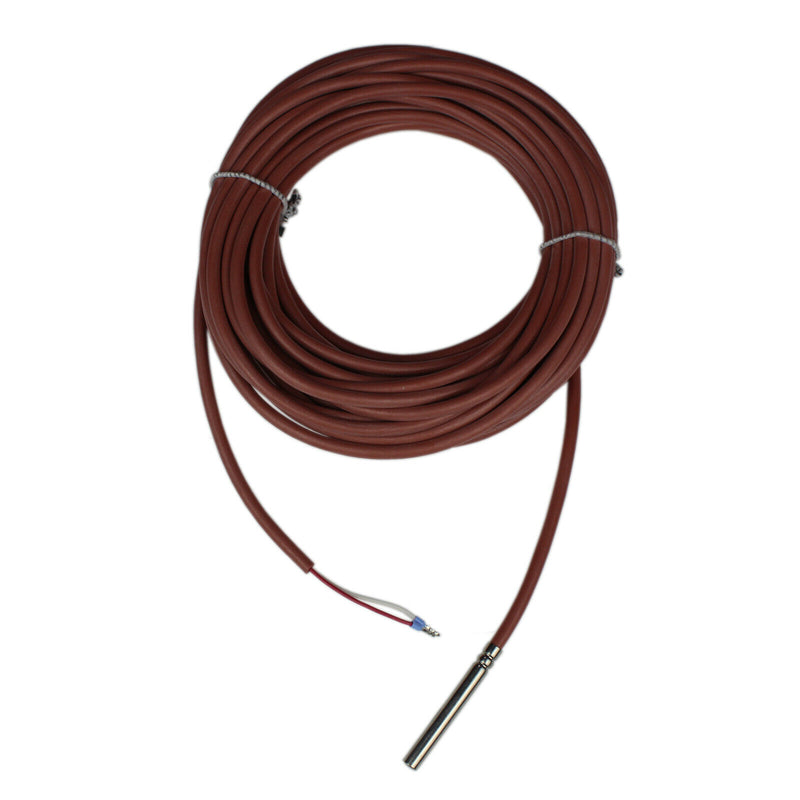

• buffer sensor
• WiFi module for Robin Wood Smartfire app
