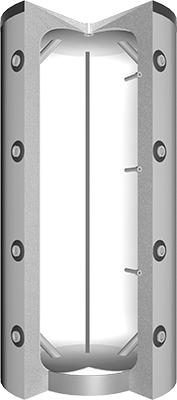

Buffer tank JPSH 800 L – High design, without heat exchanger
The JPSH buffer tank is suitable for all hot water central heating systems - regardless of whether solid fuel or oil-fired boilers, heat pumps, solar systems, gas or electric instantaneous water heaters are used. Thanks to its high design and well thought-out construction, it is also ideal for heat pumps.
product overview
This buffer tank offers an efficient solution for heat storage and even distribution in heating systems. Mitred pipes ensure optimal stratification, while larger sleeves (2") reduce flow velocities. A sensor terminal block enables variable positioning of the sensors for precise temperature control.
For additional flexibility, an electric heater can be integrated according to individual power requirements. Custom-made units in other sizes are available on request.
Technical Details & Highlights
Insulation: Optional with Ecoline fleece insulation (Made in Germany)
Layering: Miter tubes for optimal layering
Flow optimization: Large sleeves (2") for reduced flow velocities
Material: Quality steel S235JR according to EN 10025
Operating pressure: 3 bar, test pressure: 4.5 bar
Maximum operating temperature: 95°C
Sensors: Possibility to attach contact sensors
Custom-made: Special sizes available on request
Warranty: 5 years
ErP data - JPSR 800 L
| insulation |
Ecoline fleece |
| ErP Relevant Volume (L) |
802
|
| heat loss (W) |
136
|
| ErP class |
C |
| insulation thickness (mm) |
100
|
| article number |
840400
|
Manufacturer information:
Juratherm GmbH
Wilhelm-Busch-Str. 4-6
95447 Bayreuth Germany
Telephone: +49 (0) 921 / 15 13 44 - 0
E-Mail: info@juratherm.com
