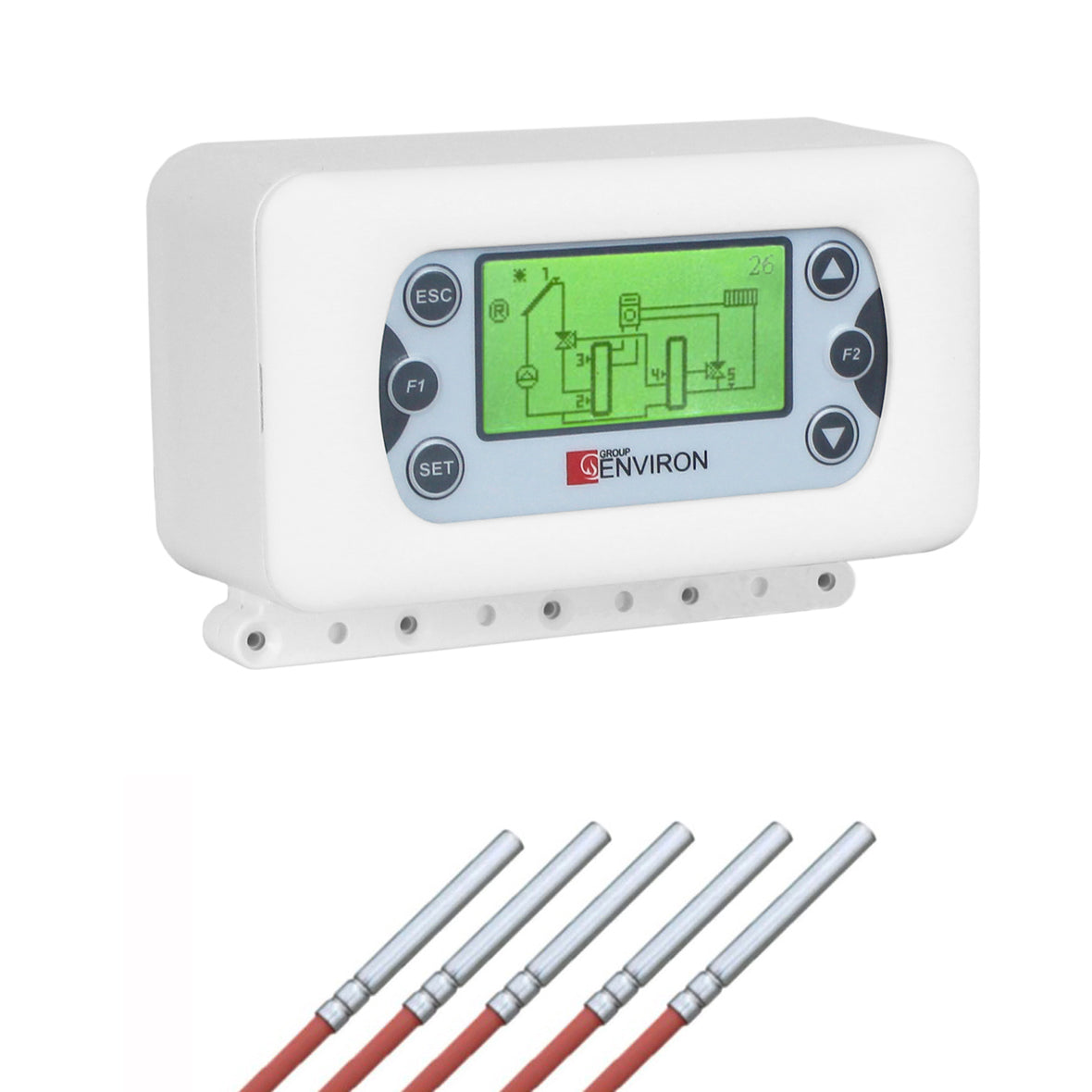

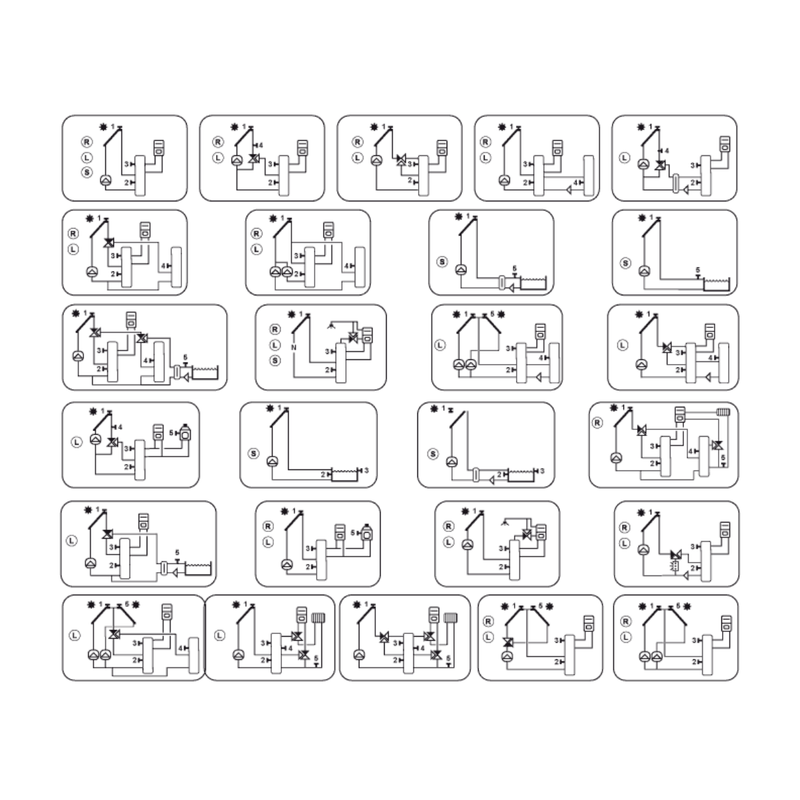

The ENVIRON TSol500 Platinum solar controller offers everything your thermal solar system needs for safe and long-term system operation, as well as intelligent loading (stratification) of heat storage tanks and swimming pools, intelligent integration of other heat generators (e.g. pellet boilers, gas boilers, etc.). You can choose between 27 different system schemes. In addition to controlling the solar system, the controller also takes on important system monitoring and safety functions. System parameters and measured values ​​can be viewed and changed via the LCD display. The controller has five Pt1000 temperature sensors for temperature detection and five outputs for controlling the solar circuit pump, burner request, three-way valve and much more (see system schemes).


Technical data
• Operating voltage (mains): 230/115 Vac 50/60 Hz
• Fuse: T 5 A
• 5x temperature sensors PT1000
• 5x outputs with 5x relays 5A 250 Vac
• Dimensions: 142x94x60 mm


Characteristics
▸ Collector field / East / West
▸ Buffer storage / buffer / swimming pool etc.
▸ Temperature sensor for any wood boiler
▸ potential-free contact ON/OFF etc.
▸ Clear display
▸ Status display for immediate detection of exceptional conditions
▸ Pump blockage due to collector overtemperature
▸ Frost protection function
▸ incl. 5 temperature sensors
▸ incl. flush-mounted box or surface-mounted box
▸ Easy installation and operation

... and many additional functions:
▸ Boiler Management / Swimming Pool
▸ Domestic water heating
▸ Boiler requirement
▸ Cooling solar circuit
▸ Collector protection
▸ Intelligent loading / temperature increase
▸ Holiday function
▸ Antifreeze
▸ Antiblock pump

scope of delivery
1x TSol 500 Solar temperature difference controller

2x mounting screws control
1x surface-mounted box
1x aperture
1x assembly and operating instructions

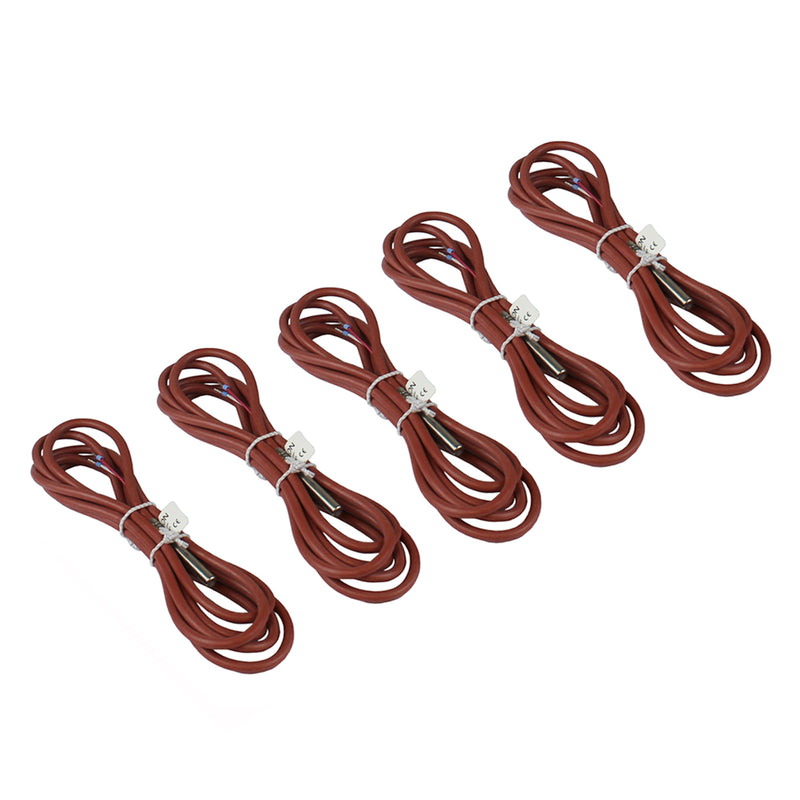

5x temperature sensors

Operating instructions: https://environworld.environgroup.de/wp-content/uploads/2021/04/TSol500.pdf

Manufacturer information:

ENVIRON Energie- und Umwelttechnik GmbH & Co. KG

Robert-Bosch-Straße 9

78048 Villingen-Schwenningen

Phone: +49 7705 977 5803

E- Mail: info@environgroup.de
Website: https://environ-solutions.de/
