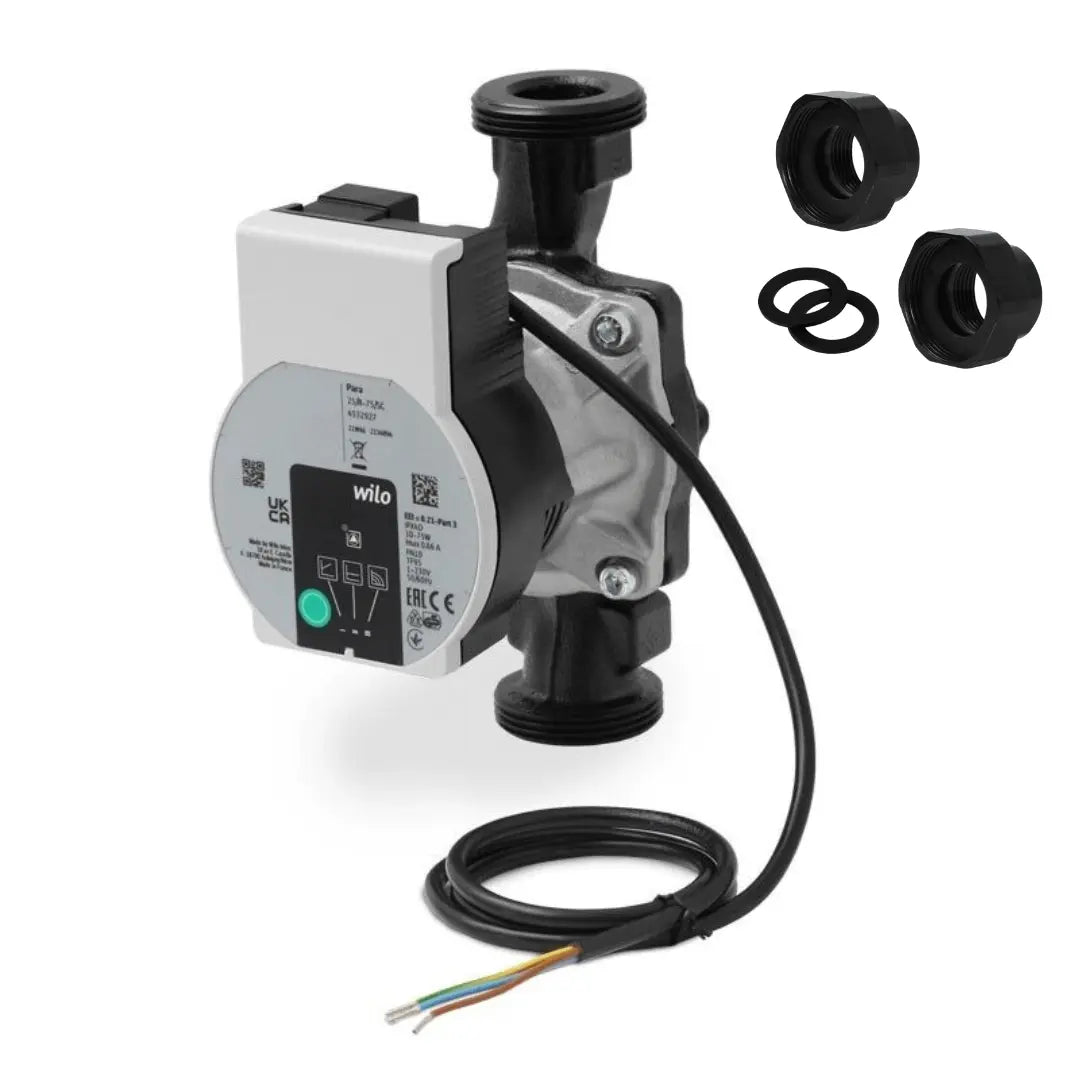

Wilo PARA 25/6 180mm 4532927
3x proportional pressure stage and 3x constant pressure stage Heating pump High efficiency pump Energy efficiency class A EEI= 0.21 - Part 3
OEM version without original packaging
pump with 1m power cable (free cable end)
Energy Efficiency Index (EEI)
¤ 0.21
- Para high-efficiency pump
The circulation pumps of the Wilo PARA series are designed for hot water heating systems and similar systems with constantly changing flow rates. Approved pumped media are heating water in accordance with VDI 2035, water/glycol mixtures with a mixing ratio of 1:1. If glycol is added, the pump's delivery data must be corrected according to the higher viscosity, depending on the percentage mixing ratio. The model is characterized by simple operation with the green push button.
All functions can be adjusted with one hand.
Technical data:
Max. delivery height: 6m
Max flow rate: 4m³/h
Temperature range: -20°C to +110°C
Power consumption: 10W-45W
Operating pressure: max. 10 bar
Pipe connection: DN 25 -> 1" or approx. 33mm
Union: G 1 1/2" (spanner size approx. 53mm)
Pump thread: 1 1/2" or approx. 48mm
Installation length: 180 mm
electrical connection: 230V/50HZ
Weight: approx. 2.6 kg
Scope of delivery:
- pump
- power cable
- Sealing kit
- a set of steel union nuts 1 1/2" x 1
Manufacturer data:
WILO SE
Wilopark 1
44263 Dortmund
Germany
Telephone: 0231 4102-0
E-Mail: wilo@wilo.com
Website: https://wilo.com/de/de/
